マグネシウムコーンのEXCELはどちらかと言うとジャズ向きです。

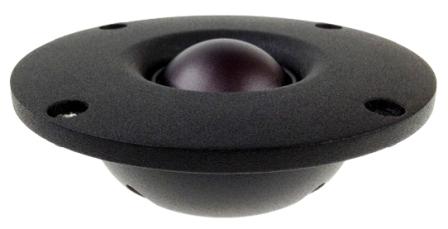

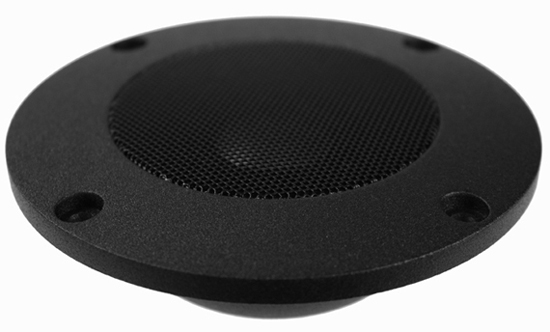

NEWT35C-002 (E0055-06) 1.5inch Textile Dome Mid-Tweeter

The T35C002 is a classic dome midrange tweeter with high sensitivity and a smooth, extended frequency response.

A coated fabric dome with integral surround manufactured by Dr. K. Müller in Germany ensures excellent performance and consistency. This supplier was among the fi rst in the world to offer fabric dome diaphragms, and did produce the diaphragm for the famous 1.5” Dome Tweeter H087, developed by Seas in 1968 and used in the famous Dynaco A25 kit.

A small, high efficiency Neodymium ring magnet in a carefully designed system contributes to high sensitivity and low distortion.

The top plate and T-yoke are CNC machined for excellent precision. A well damped vented pole and a rigid rear chamber ensure a low resonance frequency and smooth response.

A generously underhung 35mm voice coil wound from copper-clad aluminum wire further enhances the sensitivity.

Flexible lead-out wires and venting holes in the aluminum coil former help reduce noise to a minimum.

A 7 mm thick precision machined aluminum front plate with moderate horn loading ensures linear frequency response and represents an extremely stable platform for the magnet system and the moving parts.

販売価格はお問い合わせてください。

C16N001/F (E0051)

6インチ Magnesium Cone Coax

6インチ　同軸ユニット

再生周波数帯域　30Ｈｚ～25ＫＨｚ

詳しくはセアスのホームページから。

http://www.seas.no/index.php?option=com_content&task=view&id=234&Itemid=221

音質はさすがエクセルシリーズ、ハイエンドです。

キャビネットは28リットル前後のバスレフタイプも良いと思います。

販売価格はお問い合わせください。

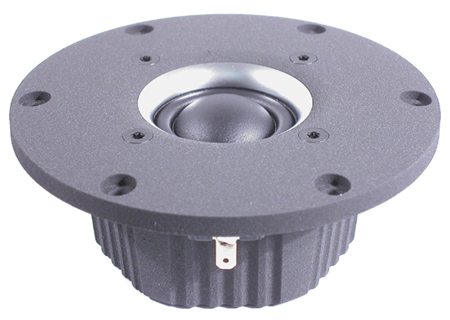

T29CF-002 (E0040)

Crescendo fabric Dome

The T29CF002, ”CRESCENDO” is an Ultra High End 29mm soft dome tweeter with a
HEXADYM magnet system.

An optimally shaped dome and integrated wide surround manufactured by SEAS
from SONOMEX ensure excellent performance and consistency.

A high efficiency HEXADYM magnet system (US Patent 6020805) based on 6
radially magnetized NdFeB magnet blocks provide efficient ventilation and damping
of cavities behind the dome, surround and voice coil. Moderate magnetic stray fields
represent no problems in AV installations.

A generously underhung voice coil with flexible lead-out wires, ensures low
distortion even with low crossover frequencies.

A 6mm precision machined aluminium front plate with moderate horn loading
ensures linear frequency response and reasonable efficiency.

The central part of the horn is made from chrome plated precision machined brass.
A substantial injection moulded rear chamber made from zinc eliminates unwanted
chamber wall resonances and conducts heat away from the magnet system.

The rear chamber and the front plate are Nextel painted to obtain a durable and attractive
finish.

Outside diameter 110.3mm
Cut out 75mm
Depth 37.5mm
25.4mm = 1" = 2.54cm

詳しいスペックはホームページ参考にしてください

http://www.seas.no/index.php?option=com_content&task=view&id=59&Itemid=83

25mmソフトドームツィーターユニット
再生周波数：2,000Hz～25,000Hz

インピーダンス：6Ω
音圧レベル：92.5dB
許可入力(通常)：90W
許可入力(瞬間)：200W
重量：0.66kg

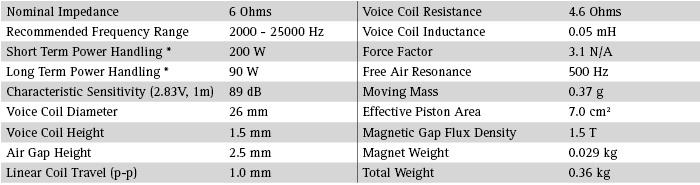

T25CF002 “MILLENNIUM” 25mm　soft dome tweeterより情報量も多く、音に艶があります。

販売価格はお問い合わせください。

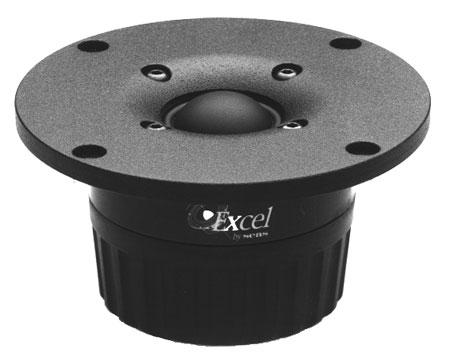

T25CF-001 (E0006)

Tweeter

The T25CF001 is a 25mm fabric dome with moderately high efficiency.
An optimally shaped dome and a wide SONOMEX surround, both manufactured by
SEAS, ensure excellent performance and consistency.

Low viscosity magnetic fluid which provides excellent cooling while maintaining a low resonance frequency.

6 mm solid metal front plate with a slight loading characteristic which ensures
linear frequency response, and a stiff and stable connection to the cabinet.

A substantial injection-moulded rear chamber, with complex internal shape and
reinforcing ribs, which eliminate unwanted chamber resonances and reflections.

A double magnet system which increases sensitivity and provides better control of the voice coil.

This system also reduces the magnetic stray fields, making the T25CF001 an ideal choice in high end A/V applications.

25mmソフトドームツィーターユニット
再生周波数：2,000Hz～25,000Hz

インピーダンス：6Ω
音圧レベル：91dB
許可入力(通常)：90W
許可入力(瞬間)：200W
重量：0.80kg

詳しいスペックはホームページ参考にしてください

http://www.seas.no/index.php?option=com_content&task=view&id=54&Itemid=78

販売価格はお問い合わせください。

W22NY-001 (E0045)

8" Nextel Cone Woofer

A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion.

§ A large magnet system with a bumped back plate, together with a very long and light weight CCAW voice coil, allow extreme coil excursion with low distortion and excellent transient response.

§ Heavy copper rings mounted above and below the T-shaped pole piece reduce non-linear and modulation distortion and increase overload margin.

§ A chrome plated brass phase plug reduces compression due to temperature variations in the voice coil, increase long term power handling capacity and eliminates resonances in the cavity inside the voice coil former.

§ The extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound reflection, air flow noise and cavity resonance to a minimum.

スペック等は下記をご覧ください。

http://www.seas.no/index.php?option=com_content&task=view&id=72&Itemid=96

販売価格はお問い合わせください。

W18NX-001 (E0042)

Nextel Cone 7" Woofer

The Seas Excel W18NX-001 is a paper cone with a unique Nextel coating, for smooth response and low distortion. The new Adaptive Surround provides greater damping in the upper frequencies and less damping for bass frequencies. A large magnet and copper clad aluminum voice coil provide good excursion, low distortion and good transient response. Heavy copper rings mounted above and below the T-shaped pole pieces reduce non-linear and intermodulation distortion. Large windows in the cast basket, above and below the voice coil reduce air flow noise and ventilate the voice coil.

Outside diameter 176mm
Cut out 145.2mm
Depth 80mm
25.4mm = 1" = 2.54cm

Nominal Impedance 8 Ohms
Recom. frequency range 30-3000 Hz
Short term max. power 250 W
Long term max. power 80 W
Sensitivity (1W/1m) 87.5 dB

Voice Coil Diameter 39 mm
Voice coil height 20 mm
Air gap height 6 mm
Linear coil travel (p-p) 14 mm
Max. coil travel (p-p) 22 mm
Magnet weight 0.64 Kg
Total weight 2.15 Kg
Voice coil resistance 6.3 Ohms
Voice coil inductance 0.43 mH
Force factor 7.0 N/A
Free air resonance 40 Hz
Moving mass 13.7 g
Suspension compliance 1.2 mm/N
Suspension mech. resistance 1.77 Ns/m
Effective piston area 126 sq. cm

Vas 24 Liters

Suggested Box Alignments:
Sealed box of 7 liters (0.3cf); f3 80Hz
Vented B4 Alignment of 14 liters (0.5cf); 2" diameter port 6" long; f3 50Hz

販売価格はお問い合わせください。

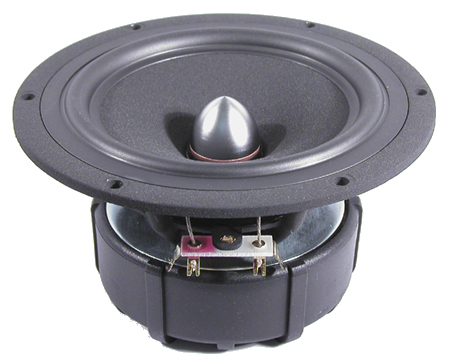

W15LY-001 (E0041)

Nextel Coated 5.5" paper Cone

The Seas Excel W15LY-001 is a paper cone with a unique Nextel coating, for smooth response and low distortion. The new Adaptive Surround provides greater damping in the upper frequencies and less damping for bass frequencies. A large magnet and copper clad aluminum voice coil provide good excursion, low distortion and good transient response. Heavy copper rings mounted above and below the T-shaped pole pieces reduce non-linear and intermodulation distortion. Large windows in the cast basket, above and below the voice coil reduce air flow noise and ventilate the voice coil.

Outside diameter 146mm
Cut out 112mm
Depth 75.5mm
25.4mm = 1" = 2.54cm

Nominal Impedance 8 Ohms
Recom. frequency range 50-4000 Hz
Short term max. power 250 W
Long term max. power 60 W
Sensitivity (1W/1m) 86.5 dB

Voice Coil Diameter 26 mm
Voice coil height 16 mm
Air gap height 6 mm
Linear coil travel (p-p) 10 mm
Max. coil travel (p-p) 20 mm
Magnet weight 0.42 Kg
Total weight 1.29 Kg
Voice coil resistance 5.7 Ohms
Voice coil inductance 0.3 mH
Force factor 4.6 N/A
Free air resonance 49 Hz
Moving mass 6.28 g
Suspension compliance 1.7 mm/N
Suspension mech. resistance 0.93 Ns/m
Effective piston area 75 sq. cm

Vas 12.0 Liters

Box Suggestions:
Sealed box 8 liters (0.3cf); f3 of 78Hz
Vented BB4 Alignment 10 liters (0.35cf); 1.5" diameter x 4.5" long; f3 50Hz

販売価格はお問い合わせください。

W12CY-003 (E0044)

Nextel coated paper cone 5" woofer

A paper cone with a unique Nextel coating ensures smooth frequency response and low distortion.

Heavy copper rings mounted above and below the T-shaped pole piece reduce non linear and modulation distortion and increase overload margin.

A large magnet system provides good sensitivity and transient response.

A chrome plated brass phase plug reduces compression due to temperature variations in the voice coil, increases long term power handling capacity and eliminates resonances in the cavity inside the voice coil former.

An extremely stiff and stable injection moulded nextel coated metal basket keeps the critical components in perfect alignment. Large windows in the basket both above and below the spider reduce sound refl exion, air fl ow noise and cavity resonance to a minimum.

Nominal Impedance 8 Ohms
Recommended Frequency Range 60 - 3500 Hz
Short Term Power Handling *200 W
Long Term Power Handling *70 W
Characteristic Sensitivity (2,83V, 1m)85.5 dB
Voice Coil Diameter 26 mm
Voice Coil Height 12 mm
Air Gap Height 6 mm
Linear Coil Travel (p-p)6 mm
Maximum Coil Travel (p-p)9 mm
Magnetic Gap Flux Density 1.1 T
Magnet Weight 0.42 kg
Total Weight 1.3 kg
Voice Coil Resistance 5.5 Ohms
Voice Coil Inductance 0.41 mH
Force Factor 5.5 N/A
Free Air Resonance 60 Hz
Moving Mass 6.1 g
Air Load Mass In IEC Baffle 0.21 g
Suspension Compliance 1.2 mm/N
Suspension Mechanical Resistance 1.03 Ns/m
Effective Piston Area 50 cm2
VAS 4 Litres
QMS 2.30
QES 0.44
QTS 0.36
*IEC 268-5 (Power Handling Method)

Suggested box alignments:

2 liter sealed box has an F3 of 115Hz
3 liter vented box (1" diameter x 4" long) has an F3 of 65Hz

Outside flange diameter 120.4mm
Cutout hole size diameter 99mm
Flange thickness 3mm
Depth 66.5mm
Six mounting holes
25.4mm = 1"
