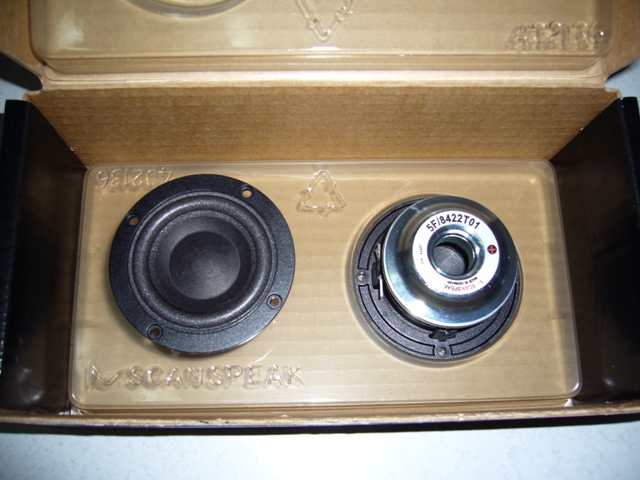

Discovery 5F/8422T-01 2inch Full Range

5F8422T5F8422T

http://www.scan-speak.dk/datasheet/pdf/5f-8422t01.pdf

54

再生周波数帯域 93Hz〜20KHz
雑誌の付録は入門2インチフルレンジ。
音質は比較になりません。
販売価格はお問い合わせください。

10cm Fullrange 10F/8424G00

http://www.scan-speak.dk/datasheet/pdf/10f-8424g00.pdf


販売価格は問い合わせください。

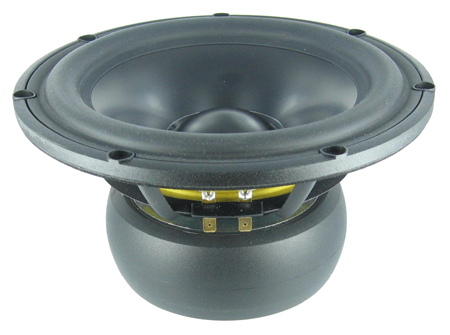

New  Revelator 32W/4878T 13" Subwoofer

http://www.scan-speak.dk/datasheet/pdf/32w-4878t00.pdf


販売価格は問いあわせください。

DO-IT-YOURSELF !

Peter Noerbaek from California based PBN Audio, has designed an exclusive 3-way loudspeaker

here.

Klang+Ton magazine from Germany designed a 2-way reference bookshelf speaker called - NADA

here.

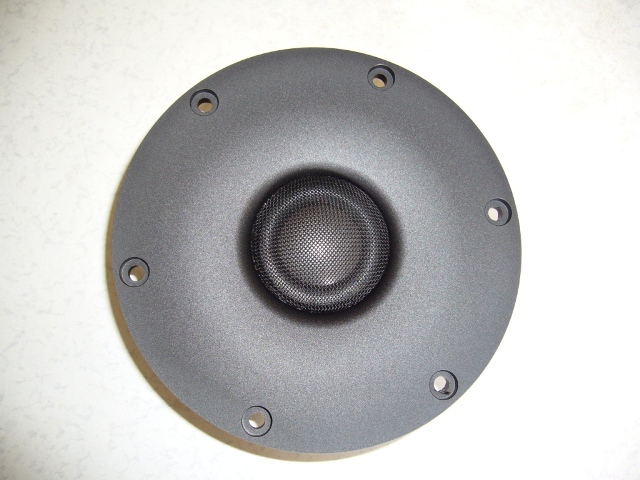

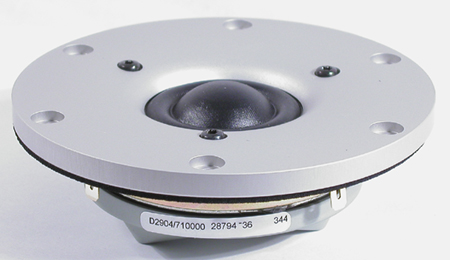

NEW D2908/7140 Beryllium Dome Tweeter (Revelator Series)



最新で一番高額なTweeterが販売されました。
イルミネーター Beryllium Dome Tweeter より能率が高く、ダイナミック(音質)です。
記録された時の原音をダイナミックな精度と優れたボーカル再生演出を持ち、全てのリスニングレベルでクリーンてクリアな音楽を再生します。

http://www.scan-speak.dk/datasheet/pdf/d2908-714000.pdf

skbtwskbtw

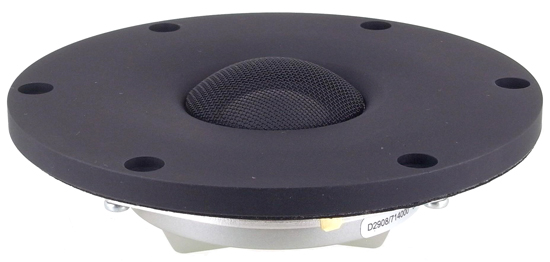

D2908/714000 is a highly efficient and high-power 8 ohm 1" beryllium dome tweeter, it reproduces music clean and clear at all listening levels with dynamic precision and a superb vocal rendition as when recorded. The smooth machined alu faceplate and the acoustical very transparent wire-mesh protection grille not only represent a beautiful appearance is also allows the sound to be dispersed free and undistorted to the listener.



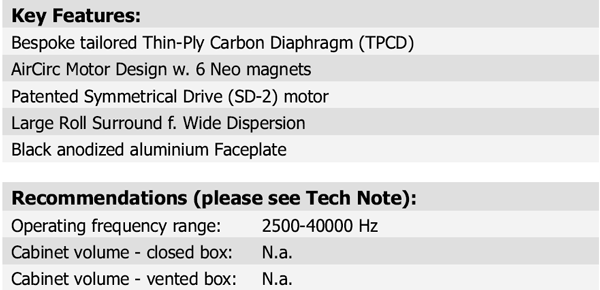

1,Beryllium Diaphragm (99% Pure Be)

2,Patented Symmetrical Drive (SD-2) motor

3,Black Anodized Ø120mm Machined Alu Faceplate

4,Rear Mount Magnet System

5,Titanium Voice Coil Former

6,Non Resonant Aluminium Rear Chamber


New Version

18W/8545-01  6 1/2"  Mid Woofer





http://www.scan-speak.dk/news/20120427a.pdf



This unit is an improved version of the highly praised 18W/8545-00 midwoofer, where a new aluminum chassis, an updated cone and a new spider as wells as a few other details are introduced, these updates improves mechanical stability and sound performance. High-quality magnet system design with patented Symmetric Drive (SD-1) continues to be key feature.



  • Patented Symmetrical Drive Motor Design
  • 42mm Voice Coil w. Alu foil
  • Low Damping SBR Rubber Surround
  • Coated Air Dried Paper/Carbon Fibre Cone
  • Low-Loss linear suspension
  • Aluminium Chassis

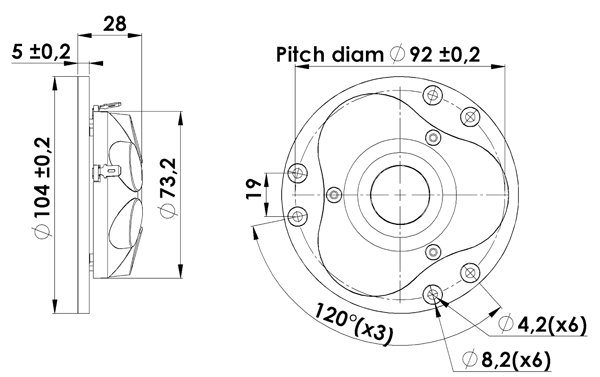

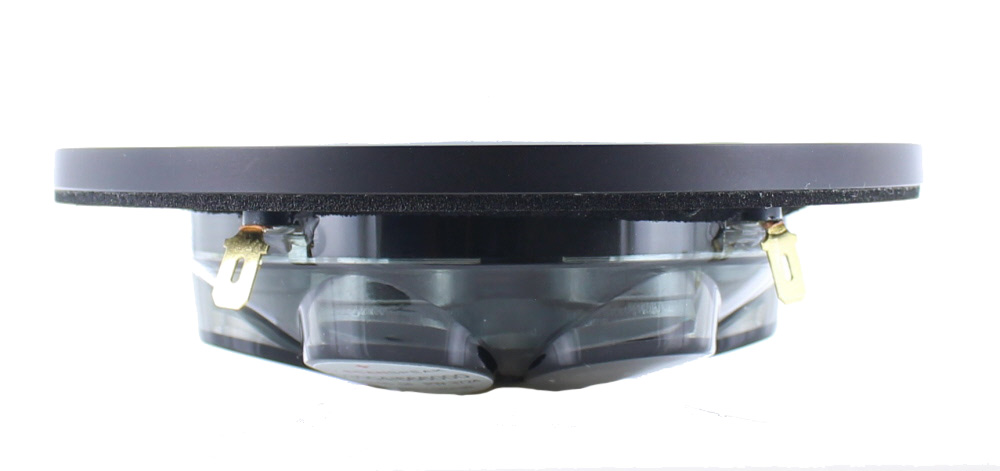

D3004/6600-00

Textile dome tweeter

AirCirc

販売価格は問い合わせください。

1" textile dome with large roll surround
AirCirc neodymium magnet system
Aluminum faceplate

Nominal Impedance 4 ohm
Re 3 ohm
Le 0.03mH
Fs 520 Hz
 ~
Sensitivity 92.5dB
Power Handling 160W
 Outside diameter 104mm
Cutout diameter 77mm
Flange thickness 5mm
Depth 23mm

再生周波数帯域  1KHz~30KHz

  下記ホームページはベリリウムツゥイターとの選択に参考になります。

http://www.audioexcite.com/?p=1953

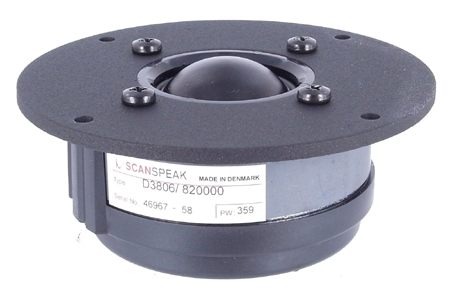

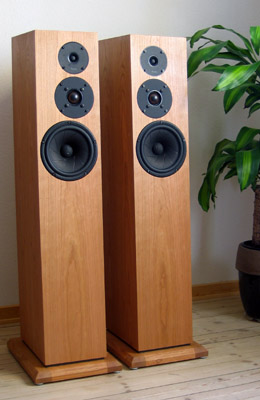

Scanspeak Classic D3806/8200-00

 1.5" Tweeter

sp38

販売価格はお問い合わせください。

D3806/8200-00, 1.5" Tweeter

1½" upper midrange, soft dome, SD motor, rear chamber

The Classic line consists of all the highly regarded transducers

that have been appraised and loved by so many customers over the years.

The goal has been to assemble all the diamonds,

developed over the years, speakers that fully live up to the heritage of the brand.

SPEC

http://www.scan-speak.dk/datasheet/d3806_820000.htm

ATC75-150(S),VOLT VM752 と共に世界的に評価を受けているMid domeです。

40年ほど前に作られましたが、未だに音質は褪せることがありません。

最近のハイエンドミッドレンジウーハーもこの音質を超えるものはあまり現れていません。

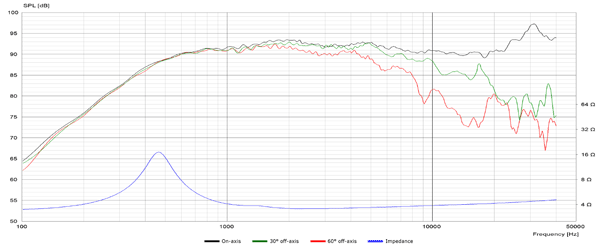

Scan-Speak Discovery D2604/8330-00

 1" Dome Tweeter



販売価格はお問い合わせください。

§  Dome tweeter

§  Extended Frequency to Above 40KHz

§  High sensitivity - 94dB

§  Low Resonance Frequency - 475Hz

§  Low Distortion

§  Wide Dispersion

§  Silk Fabric Diaphragm, Large Surround

§  Bucking Magnet

§  Rear Chamber

§  Copper-Clad Aluwire



スペックは下記を参照してください。

http://www.scan-speak.dk/datasheet/pdf/d2604-833000.pdf

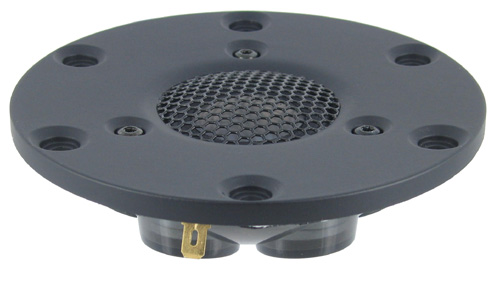

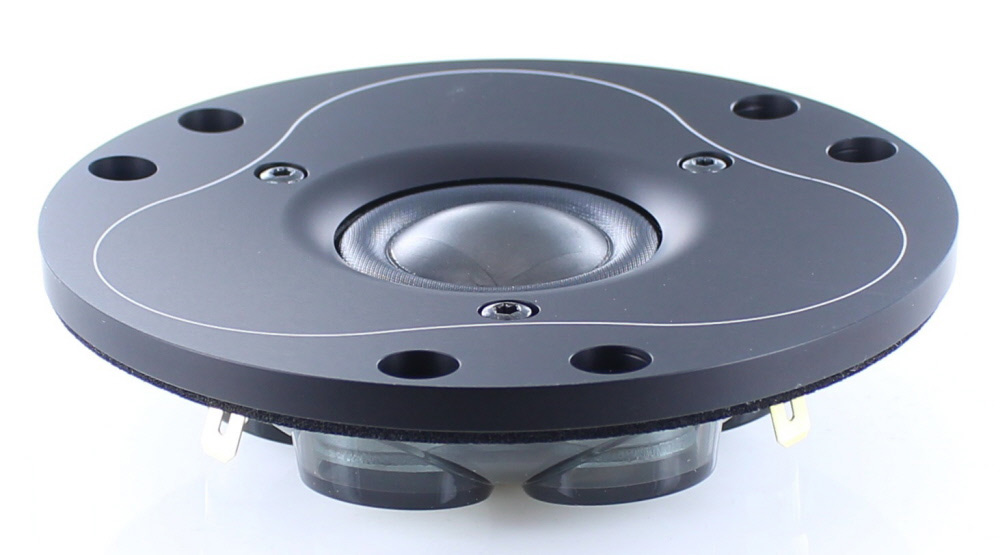

Illuminator D3004/6640-00

 1" Metal Dome Tweeter



販売価格はお問い合わせください。

(R29,D29を音質も超えています)

§  AirCirc Magnet System

§  Black rubber painted aluminium faceplate

§  Beryllium Diaphragm

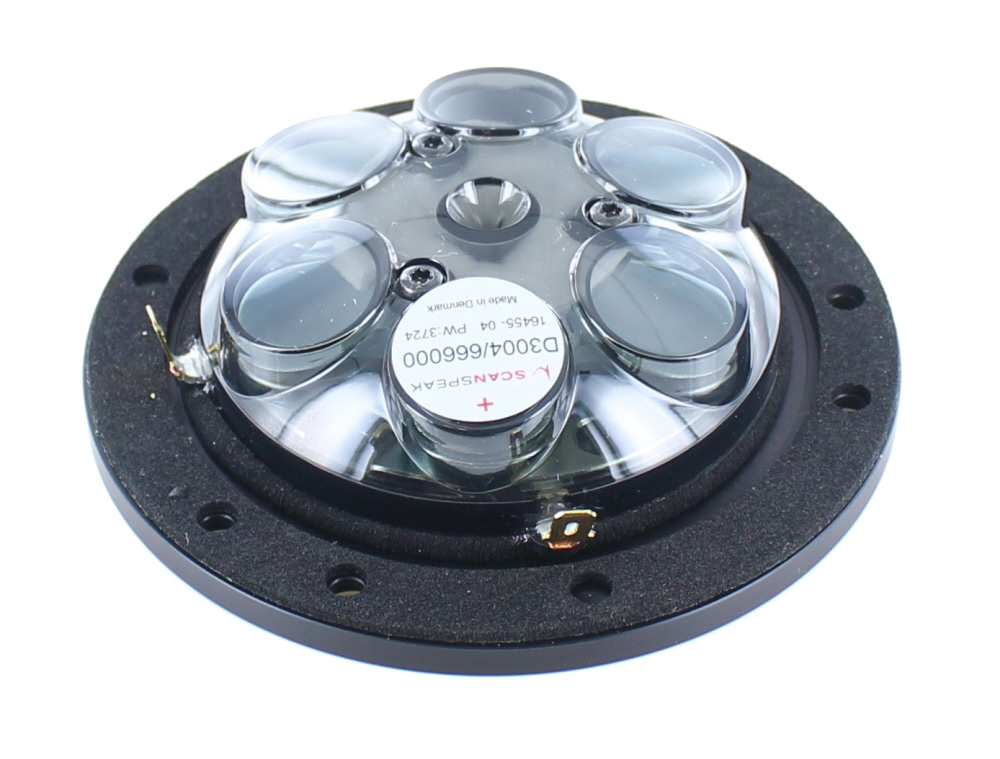

This tweeter features a 99% pure Beryllium dome diaphragm. The large roll surround and Beryllium dome diaphragm provide a flat frequency response to above 40KHz with outstanding off-axis dispersion and a silky-smooth sound.

ScanSpeak’s unique AirCirc Magnet System -- named for the way it optimizes air flow within the chamber –- rearranges the traditional magnet structure from a single magnet to an open magnetic circuit comprised of six separate neodymium slugs. This, in combination with the chamber, results in the elimination of the reflections and resonances that compromise the performance of traditional motors.

The D3004 gives engineers improved control over critical midrange performance, for superb vocal rendition and excellent imaging at all listening locations.

Driver Highlights:

§  1" Beryllium Diaphragm (99% pure Beryllium)

§  AirCirc Magnet System with 6 Neodymium Magnet slugs

§  Die cast rubber painted aluminium faceplate for maximum mechanical stability and beautiful look

§  Protective grill

 http://www.scan-speak.dk/datasheet/pdf/d3004_664000.pdf


15W/8434G00 Discovery

 5.25" Midwoofer

Manufacturer: ScanSpeak



販売価格はお問い合わせください。

Aluminium Chassis, Fiber Glass cone, NR rubber surround, Vented below Spider

2.5 liters sealed, F3 145

4 liters vented, 1.5" x 4", F3 80

 The GF series is designed for the discerning audiophile customer. To meet the needs of this audience, several new technologies were developed with  the goal of lowering distortion and damping in the speaker. The coated fiberglass cone reduces vibration and standing waves, and the vented motor system minimizes power compression. The combined result is a very open and dynamic sound.

  http://www.scan-speak.dk/datasheet/pdf/15w-8424g00.pdf

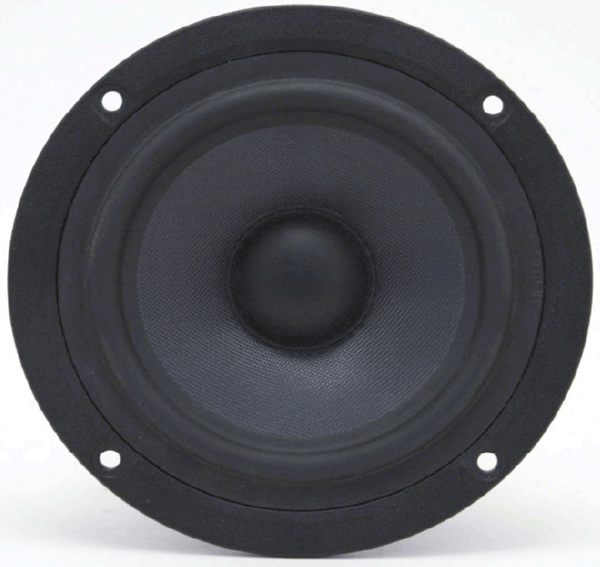

18W/8434G00 Discovery

 6.5" Midwoofer

Manufacturer: ScanSpeak

販売価格はお問い合わせください。

Aluminium Chassis, Fiber Glass cone, NR rubber surround, Vented below Spider

6 liters sealed, F3 100

14 liters vented, 2" x 6", F3 55

The GF series is designed for the discerning audiophile customer. To meet the needs of this audience, several new technologies were developed with the goal of lowering distortion and damping in the speaker. The coated fiberglass cone reduces vibration and standing waves, and the vented motor system minimizes power compression. The combined result is a very open and dynamic sound.

 http://www.scan-speak.dk/datasheet/pdf/18w-8424g00.pdf


10F/4424G00 Discovery

 4" Midrange

Manufacturer: SB Acoustics



販売価格はお問い合わせください。

Driver Highlights: Aluminium Chassis, Fiber Glass cone, NR rubber surround, Neodynium Magnet

1 liter sealed, F3 275

1.2 liters vented, 1" x 3", F3 125

 The Discovery series is designed for the discerning audiophile customer. To meet the needs of this audience, several new technologies were developed with the goal of lowering distortion and damping in the speaker. The coated fiberglass cone reduces vibration and standing waves, and the vented motor system minimizes power compression. The combined result is a very open and dynamic sound.

 http://www.scan-speak.dk/datasheet/pdf/10f-4424g00.pdf



8ohmタイプ 10F/8424G00

 http://www.scan-speak.dk/datasheet/pdf/10f-8424g00.pdf

Classic 13M/8640

 5" Paper Cone Midrange



販売価格はお問い合わせください。

再販されたのですが、また製造中止になりました。

残念です。

残り僅か。(H24.3.10)

名機と言っても過言ではないと思います。

とにかく瑞々しく、しっとりした個性豊かな音質です。

The Classic line consists of all the highly regarded transducers that have been appraised and loved by so many customers over the years. The goal has been to assemble all the diamonds, developed over the years, speakers that fully live up to the heritage of the brand.

§  Paper cone

§  SD motor

§  Low loss rubber surround

http://www.scan-speak.dk/datasheet/13m_8640-00.htm

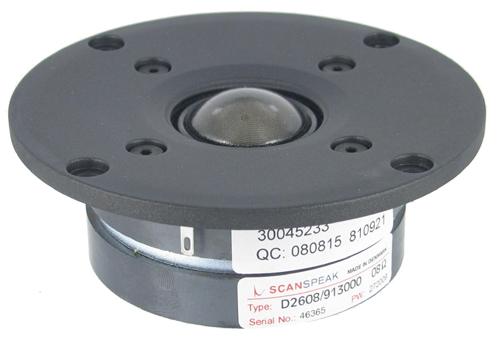

D2608-913000

Discovery

1inch dome Tweeter



販売価格はお問い合わせください。

• Very light, low mass soft dome

diaphragm with high internal damping

• Highly-optimized, Low-compression

Magnet System with Double magnets

• Magnetic fluid

• Fully Vented Motor System

• Low resonance Frequency

• Black Die-Cast Aluminium Face Plate

Made in Denmark

スペック

http://www.scan-speak.dk/datasheet/pdf/d2608-913000.pdf

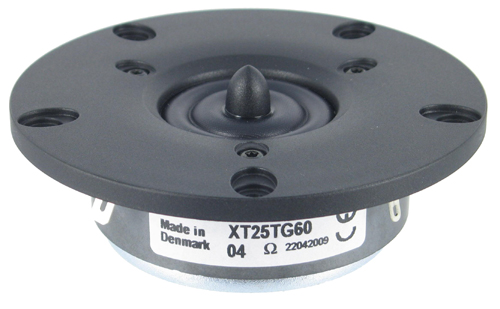

R2604/8320

Discovery - Tweeter

1" Ring Radiator Tweeter

販売価格はお問い合わせください。

§  This is the Danish version of the XT25TG60-04,

made in Denmark by Scan-speak.

§  Key Features:

§  • Dual Ring Radiator diaphragm (Patent)

§  • Wave-guide center plug (Patent)

§  • Extended Frequency To Above 40KHz

§  • Very Low Resonance Frequency - 550Hz

§  • Low Distortion

§  • Silk Fabric Diaphragm

§  • Rear Chamber

§  • copper-clad aluwire



Spec data

http://www.scan-speak.dk/datasheet/pdf/r2604-832000.pdf

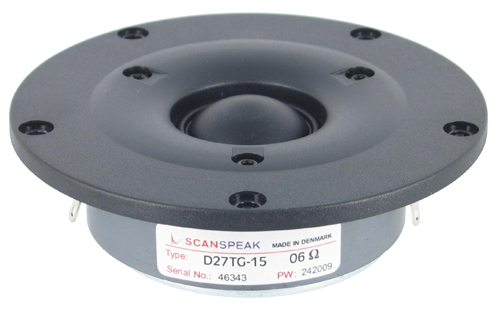

D2606/9200

1" Textile Dome Tweeter

Discovery - Tweeter

販売価格はお問い合わせください。

This is the Danish version of the D27TG15-06, made in Denmark by Scan-speak.

Key features:

• High Performance Tweeter

• Coated Silk Fabric Diaphragm

• Low Damping Ferrofluid Cooling

• High Stability

• Linear response faceplate

• Dampened Cavity in Pole Piece

• Braided tinsel leads

• Neutral Design



 Spec data

 http://www.scan-speak.dk/datasheet/pdf/d2606-920000.pdf


12MU/4731T-00

4.5" Illuminator Midrange 4 ohm


販売価格は問い合わせください。

スペックは

The Illuminator woofers are based on compact under-hung motor systems with large neodymium ring magnets. The patent pending motor offers a very long linear excursion together with a very high force factor. The top plate is shaped to “guide” the backside airflow around the motor and with the very open cast aluminum chassis design the driver is virtually free from compression.

§  Neodymium magnet

§  Under hung motor system

§  One pieces cone and dust cap, full cone technology

§  Foam surround

The under-hung voice coil is precision wound with CCAW ribbon wire on a titanium bobbin for a low loss yet high power handling design. The vented pole piece has contoured openings to eliminate any hint of turbulence noise. The uniquely shaped top plate and open air frame ensure there is virtually no dynamic compression caused by restriction of the diaphragm back wave.

Dimensions:
Outside diameter 120mm
Cut out hole diameter 101mm
Flange thickness 4mm
Depth 66mm
Screw hole circle diameter at 111.5mm
Screw holes 3.7mm






15W/8741T-00

Illuminator

5インチ Woofer

販売価格は問い合わせください。

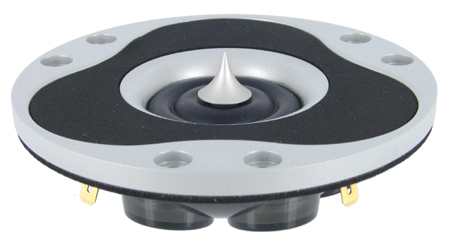

 R3004/6620-00

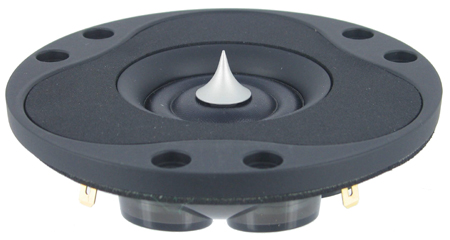

Illuminator Ring Radiator Tweeter

新型ユニットIlluminator シリーズ

  Ring Radiator

デザインが2種類あります。

販売価格は問い合わせください。

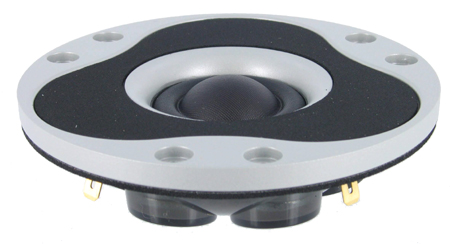

D3004/6620-01

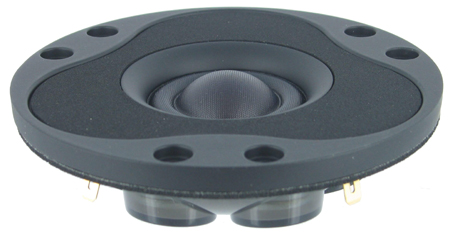

Illuminator Tweeter

販売価格は問い合わせください。

新型ユニットIlluminator シリーズ

ツゥイター ドーム型 デザインが二種類あります。

 再生周波数帯域 500KHz30KHz

 The Illuminator tweeters continue on with the heritage of the renowned Revelator D29. The large-roll surround and textile dome diaphragm provide a flat frequency response to above 30KHz with outstanding off-axis dispersion. The face plates are die cast in aluminum for a beautiful look with maximum mechanical stability. Tymphany’s unique AirCirc Magnet System -- named for the way it optimizes air flow within the chamber – rearranges the traditional magnet structure from a single magnet to an open magnetic circuit comprised of six separate neodymium slugs. This, in combination with the chamber, results in the elimination of the reflections and resonances that compromise the performance of traditional motors. The D3004 gives engineers improved control over critical midrange performance, for superb vocal rendition and excellent imaging at all listening locations.

Driver Highlights: 1" soft dome, AirCirc Magnet System, Rubber painted aluminium die casted faceplate, Black

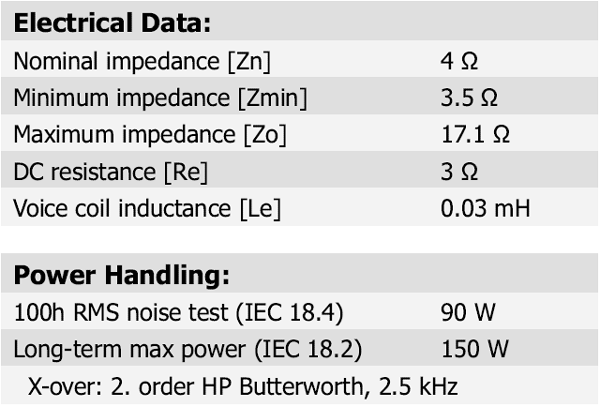

Electrical Data
Nominal impedance Zn 4 ohm
Minimum impedance Zmin 9 ohm
Maximum impedance Zo 18.6 ohm
DC resistance Re 3 ohm
Voice coil inductance Le 0.03 mH

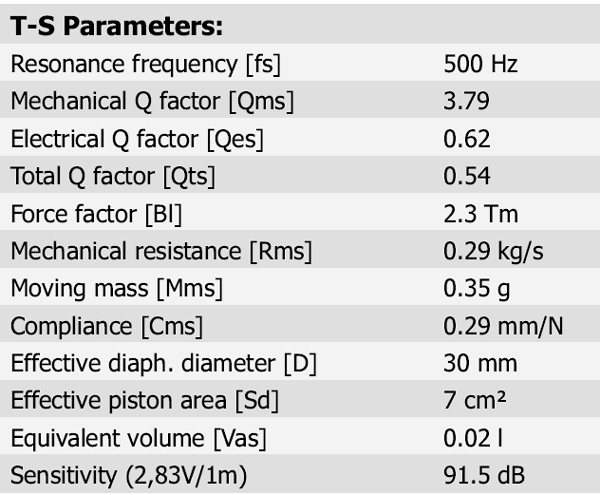

T-S Parameters
Resonance Frequency fs 500 Hz
Force factor Bl 2.3 Tm
Moving mass Mms 0.35 g
Suspension compliance Cms 0.29 mm/N
Effective piston area Sd 7 cm2
Sensitivity (2.83V/1m) 91.6 dB

Power handling

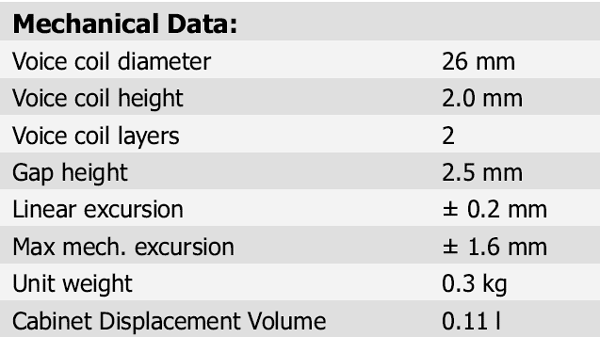

Voice Coil and Magnet Parameters
Voice coil diameter 26 mm
Voice coil height 2.1 mm
Voice coil layers 2
Height of the gap 2.5 mm
Weight of magnet 0.3 Kg

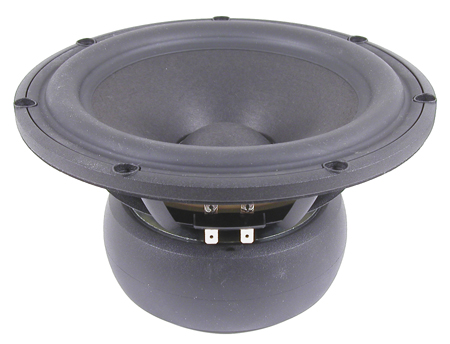

 18WU/8741T-00

Illuminator 7" Paper Cone Woofer



販売価格は問い合わせください。

スキャンスピークの新型ウーハーです。

 1  Under hung voice coil

2  Neodymium magnet

3  Exceptionally long linear excursion

4  paper cone

5  8 ohm

 The Illuminator woofers are based on compact under-hung motor systems with large neodymium ring magnets. The patent pending motor offers a very long linear excursion together with a very high force factor. The top plate is shaped to “guide” the backside airflow around the motor and with the very open cast aluminum chassis design the driver is virtually free from compression.


詳しくはホームページを参照してください。

http://www.tymphany.com/categories/scanspeak/midwoofer/illuminator

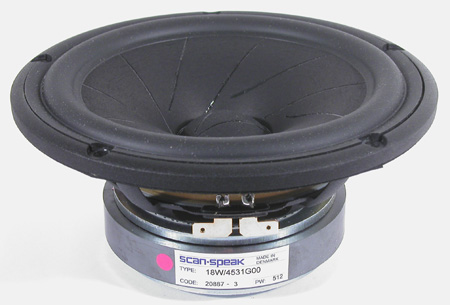

18W/4531G-00

7" Revelator

販売価格はお問い合わせください。

TECHNICAL DATA:
Sensitivity 2.83V/1M 90dB
Free air resonance Fs 33 Hz
DC resistance 3.4 ohm
V.C. inductance 0.3 mH
Power 70W
Effective cone area 150 cm2
V.C. diameter 38 mm
 Lin. & max. excursion ±6.5 / ±11 mm
Air gap flux density -
Force factor BL Product 5.7 Tm
Moving mass incl. air 17.5 g
Net weight 1.75 kg
Vas 42 ltrs
Qms 5.2
Qes 0.38
Qts 0.35

Outside diameter: 182mm
Cut out: 156mm
Depth: 77mm


18W/8531G-00

7" Revelator

販売価格はお問い合わせください。

TECHNICAL DATA:
Sensitivity 2.83V/1M 87dB
Free air resonance Fs 27.5 Hz
DC resistance 5.8 ohm
V.C. inductance 0.35 mH
Power 70W
Effective cone area 150 cm2
V.C. diameter 38 mm
 Lin. & max. excursion ±6.5 / ±11 mm
Air gap flux density -
Force factor BL Product 6.7 Tm
Moving mass incl. air 15.5 g
Net weight 1.75 kg
Vas 61 ltrs
Qms 5.0
Qes 0.39
Qts 0.36

Outside diameter: 182mm
Cut out: 156mm
Depth: 77mm
25.4mm = 1" = 2.54cm


12M/4631G 00

4.5" Midrange

販売価格はお問い合わせください。

TECHNICAL DATA:
Sensitivity 2.83V/1M 89dB
Free air resonance Fs 75 Hz
DC resistance 3.2 W
V.C. inductance 0.22 mH
Power 40W
Effective cone area 49 cm2
V.C. diameter 38 mm
 Lin. & max. excursion ±3/ ±7 mm
Air gap flux density -
BL 5.3 Tm
Moving mass incl. air 6.5 g
Net weight 0.51 kg
Outside diameter: 115.5mm
Cut out: 92mm
Depth: 48.4mm


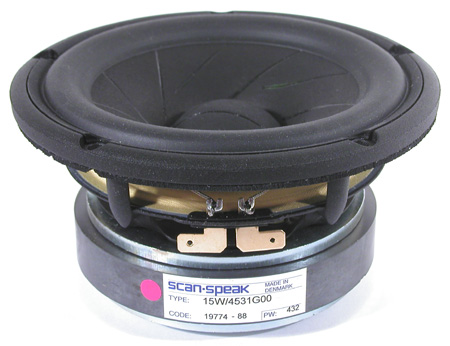

15/453100

販売価格はお問い合わせください。

TECHNICAL DATA:
Sensitivity 2.83V/1M 87 dB
Free air resonance Fs 39.5 Hz
DC resistance 3.4 ohm
V.C. inductance 0.25 mH
Power 12dB@Hz 60W
Effective cone area 95 cm2
V.C. diameter 38 mm
Lin. & max. excursion ±6.5 & ±9mm
 Force factor BL Product 5.7 Tm
Moving mass incl. air 13 g
Net weight 1.6 kg
Vas 16 ltrs
Qms 4.6
Qes 0.34
Qts 0.32
Outside diameter: 148mm
Cut out: 125mm
Depth: 71mm

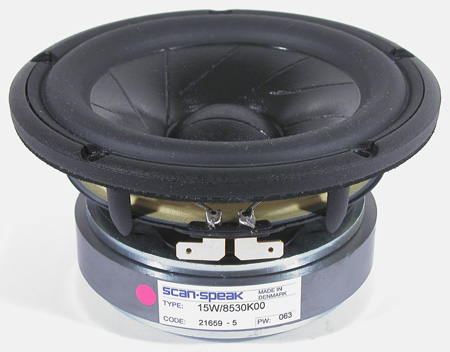

15/8530-00

販売価格はお問い合わせください。

Low Qts version

TECHNICAL DATA:
Sensitivity 2.83V/1M 85.5/84.5dB
Free air resonance Fs 30 Hz
DC resistance 5.8 ohm
V.C. inductance 0.35 mH
Power 12dB@Hz 60W
Effective cone area 95 cm2
V.C. diameter 38 mm
 Lin. & max. excursion ±6.5 & ±9mm
Air gap flux density -
Force factor BL Product 7/6.1 Tm
Moving mass incl. air 13 g
Net weight 1.6/1.3 kg
Vas 28 ltrs
Qms 4.9
Qes 0.29/0.38
Qts 0.27/0.35

Outside diameter: 148mm
Cut out: 125mm
Depth: 71mm


22W/4851T

Revelator

販売価格はお問い合わせください。

TECHNICAL DATA:
4 ohm impedance
Sensitivity 2.83V/1M 89 dB
Free air resonance Fs 20.5 Hz
DC resistance 3.7 ohm
Power 170 W
Effective cone area 220 cm2
V.C. diameter 50 mm

Lin. & max. excursion ±9 / ±14 mm
Force factor BL Product 8.2 Tm
Moving mass incl. air 32.5 g
Net weight 3.6 kg
Vas 127 ltrs
Qms 5.2
Qes 0.23
Qts 0.23

Outside diameter: 222mm
Cut out: 194mm
Depth: 111mm


22W/8851T

Revelator

販売価格はお問い合わせください。

TECHNICAL DATA:
Sensitivity 2.83V/1M 88 dB
Free air resonance Fs 21 Hz
DC resistance 6.2 ohm
V.C. inductance 0.35 mH
Power 170 W
Effective cone area 220 cm2
V.C. diameter 50 mm
 Lin. & max. excursion ±9 / ±14 mm
Air gap flux density -
Force factor BL Product 9.9 Tm
Moving mass incl. air 31 g
Net weight 3.6 kg
Vas 127 ltrs
Qms 5.1
Qes 0.26
Qts 0.25

Outside diameter: 222mm
Cut out: 194mm
Depth: 111mm


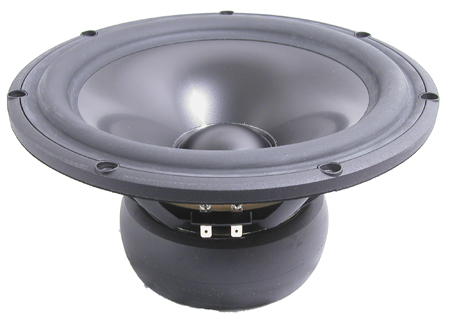

22W/8857T

Black aluminum cone

販売価格はお問い合わせください。

Impedance 8 ohm
Re 6.2 ohm
Fs 23 Hz
Qms 4.9
Qes 0.32
Qts 0.3
BL 10.1 Tm
Mms 37 g
Sd 200 cm2
Vas 89 liters
Sensitivity 86dB
Power 170W Rms
50mm voice coil diameter
9mm x-max peak

Frame diameter 222mm
Cut out hole size 194.1mm
Flange thickness 7mm
Depth 111mm


26W/4867T

4Ω black Aluminum cone

販売価格はお問い合わせください。

TECHNICAL DATA:
Sensitivity 2.83V/1M 89 dB
Free air resonance Fs 18 Hz
DC resistance 3.7 ohm
V.C. inductance 0.25 mH
Power 170 W
Effective cone area 320 cm2
V.C. diameter 50 mm
 Lin. & max. excursion ±9 / ±14 mm
Force factor BL Product 8.3 Tm
Moving mass incl. air 51 g
Net weight 3.7 kg
Vas 223 ltrs
Qms 5.8
Qes 0.31
Qts 0.30


26W/8867T

Black Aluminum cone

販売価格はお問い合わせください。

TECHNICAL DATA:
Sensitivity 2.83V/1M 87 dB
Free air resonance Fs 19 Hz
DC resistance 5.8 ohm
V.C. inductance 0.4 mH
Power 170 W
Effective cone area 320 cm2
V.C. diameter 50 mm
 Lin. & max. excursion ±9 / ±14 mm
Air gap flux density -
Force factor BL Product 11.2 Tm
Moving mass incl. air 57 g
Net weight 3.7 kg
Vas 179 ltrs
Qms 4.5
Qes 0.31
Qts 0.29


D2904/7100

silver face plate

販売価格はお問い合わせください。

TECHNICAL DATA:
Sensitivity 2.83V/1M 94.5dB
Free air resonance Fs 520 Hz
DC resistance 3.0 ohm
V.C. inductance 0.01 mH
Power 12dB@Hz 160W@2.5K
Effective cone area 7 cm2
V.C. diameter 28 mm
Lin. & max. excursion ±0.2 / ±1.6mm
Force factor BL Product 2.8 Tm
Moving mass incl. air 0.35 g
Net weight 0.42 kg
Outside diameter: 104mm
Cut out: 70mm
Depth: 30.9mm

再生周波数帯域 2kHz40kHz

ブラックタイプも同価格


R3004/6020-00

D2004/6020-00

D3004/6020-00

R2004/6020-00

D2905/9900

D2905/9700

D2905/9500

26W/8861T

13M/8636

18WU/4747T

18WU/8747T



各品番とも

販売価格はお問い合わせください。
