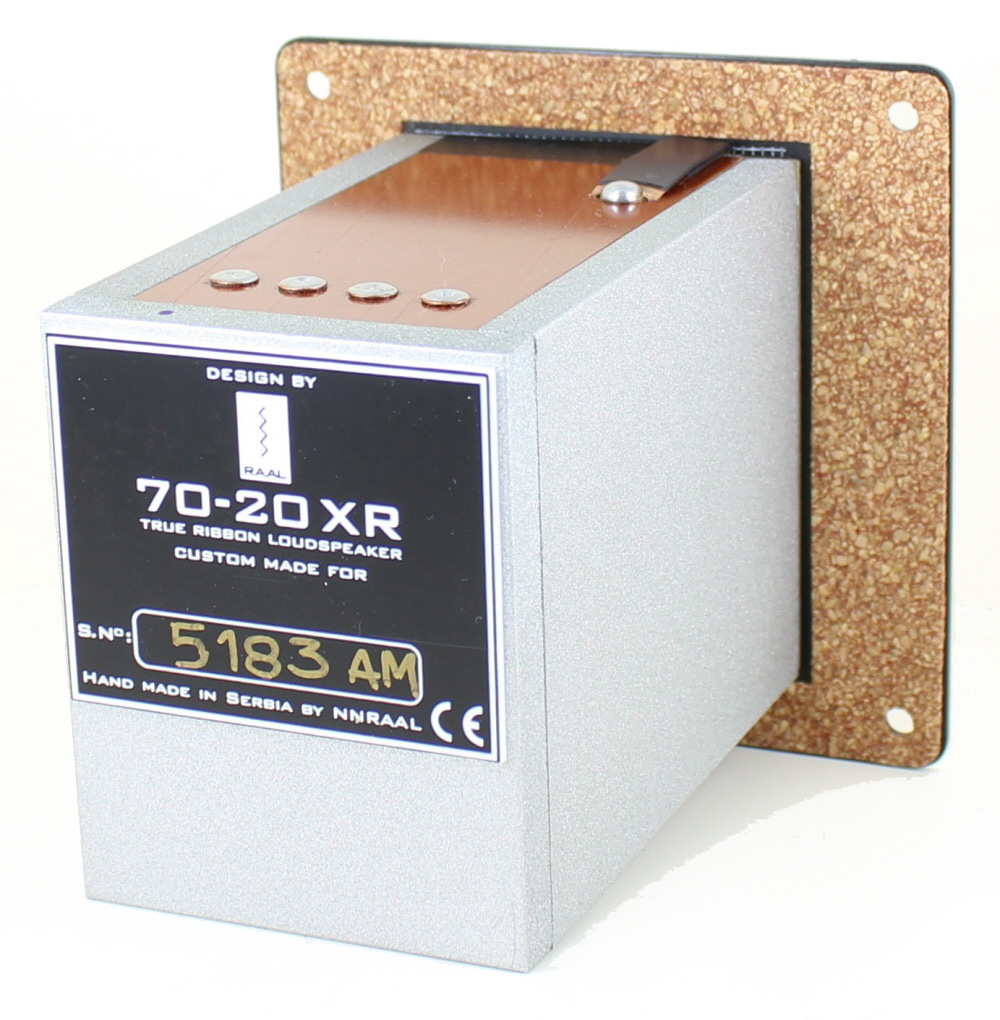

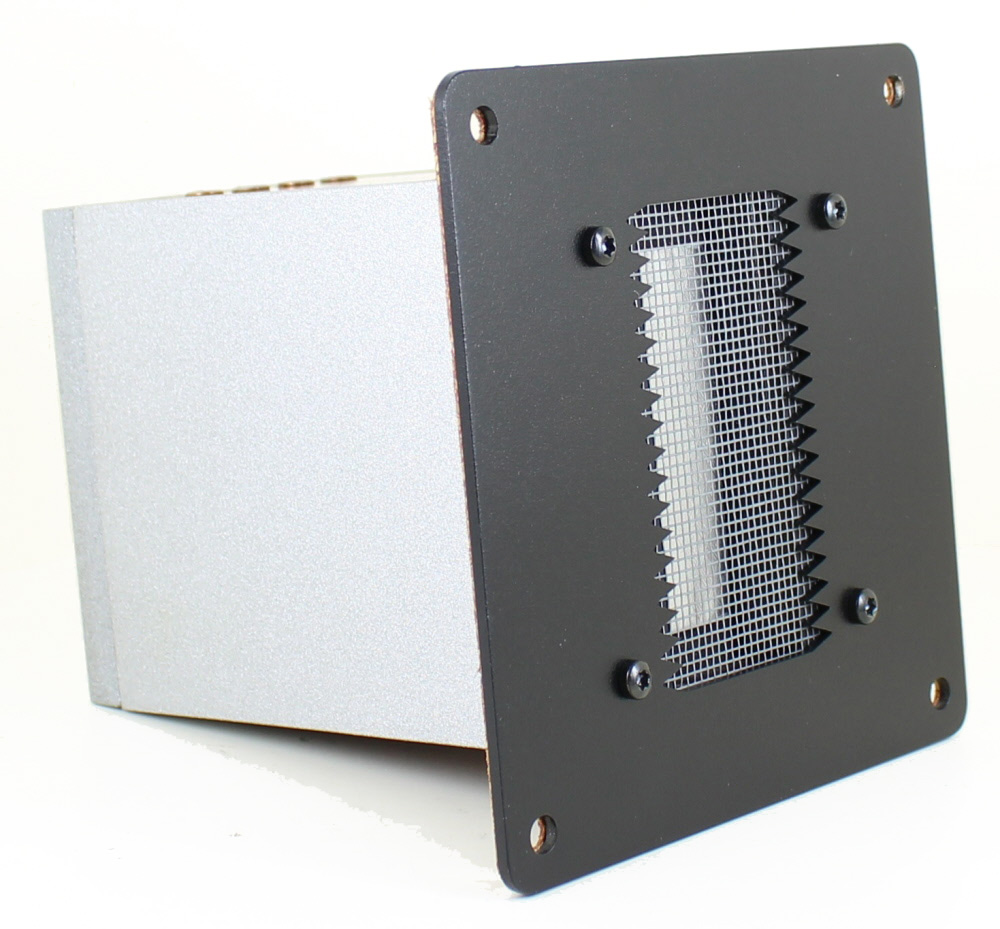

The latest Raal 70 with
selectable SPL and impedance!

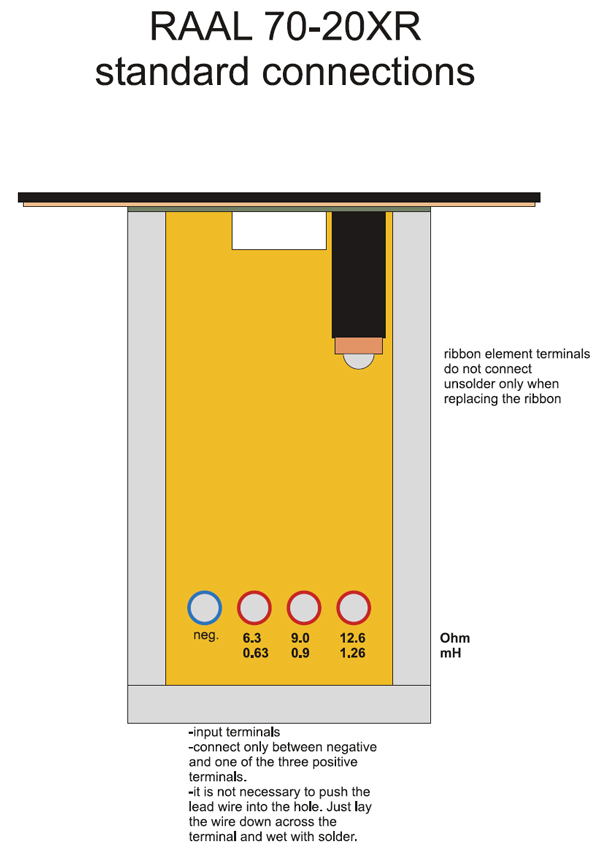

Simply connect to the + solder
pad with the desired impedance and SPL: 6.3 ohm/ 93 dB or 9 ohm/ 91.5 dB
or 12.6 ohm/ 90 dB
- High
frequency FLATFOIL true ribbon
- Amorphous
metal core transformer
- 8 ohm,
200W
- Fs 1.6kHz
- Optional
foam "deflector" pads (not included, available here)
- 110mm x
110mm faceplate
World’s smallest form factor for a true ribbon of
just 1.8 kHz cutoff frequency, reliable, able to handle a lot of power,
sounding like it doesn’t exist... All that by using only one series

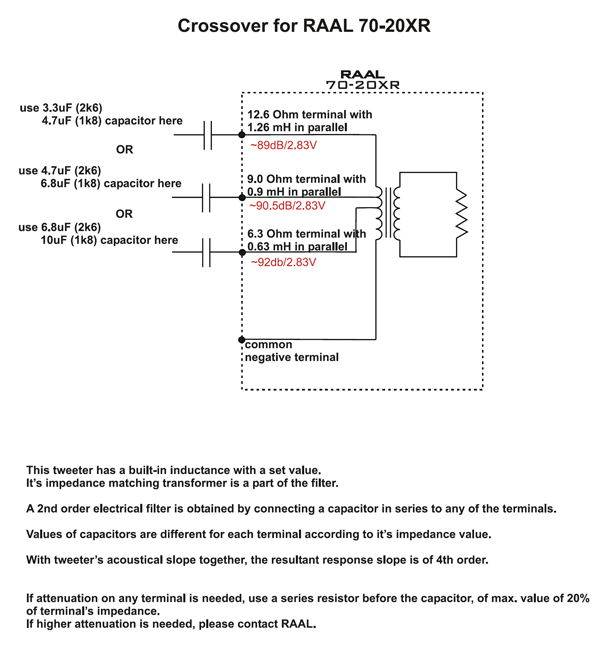

capacitor as a complete L-R 4th order crossover at 1.8k, combining
acoustical and electrical slopes, with minimum of added passive
crossover components.
Featuring three transformer taps for resistorless
sensitivity adjustment, ribbon
replacement kits, custom front plates, and copper soldering pads. All of
this makes it perfect for reaching new limits in high-end home stereo or
multichannel and near-to-mid field studio monitoring applications. It
was developed according to the wishes of the most demanding
manufacturers that were looking for a quantum leap in true ribbon
design.
The exact process of making it will remain a well
kept secret. Being different than anything else, including
other RAAL models, 140-15D and 70-10.
販売価格はお問い合わせください。

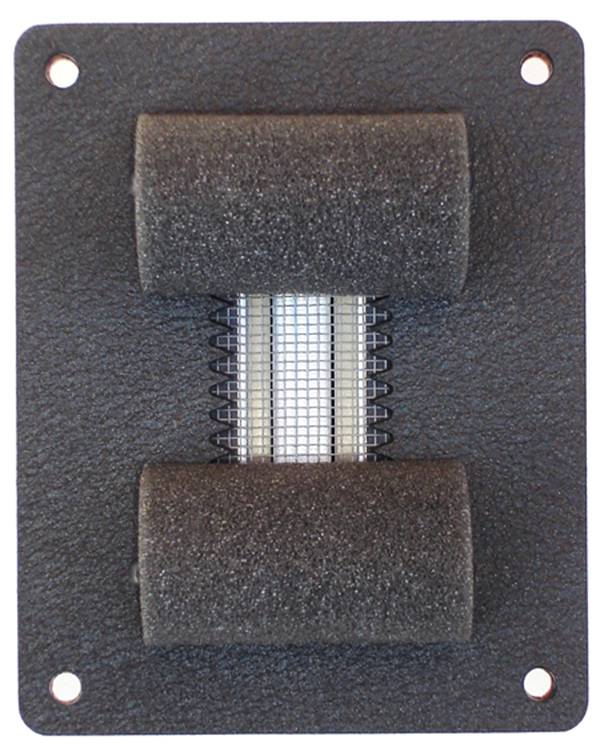

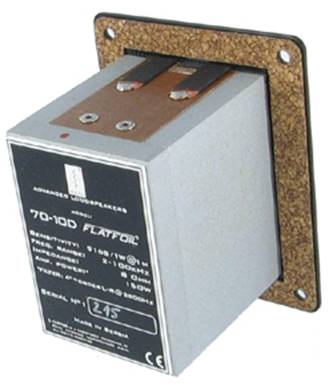

70-10D RAAL Ribbon Tweeter
(with optional Amorphous Core)
販売価格はお問い合わせください。

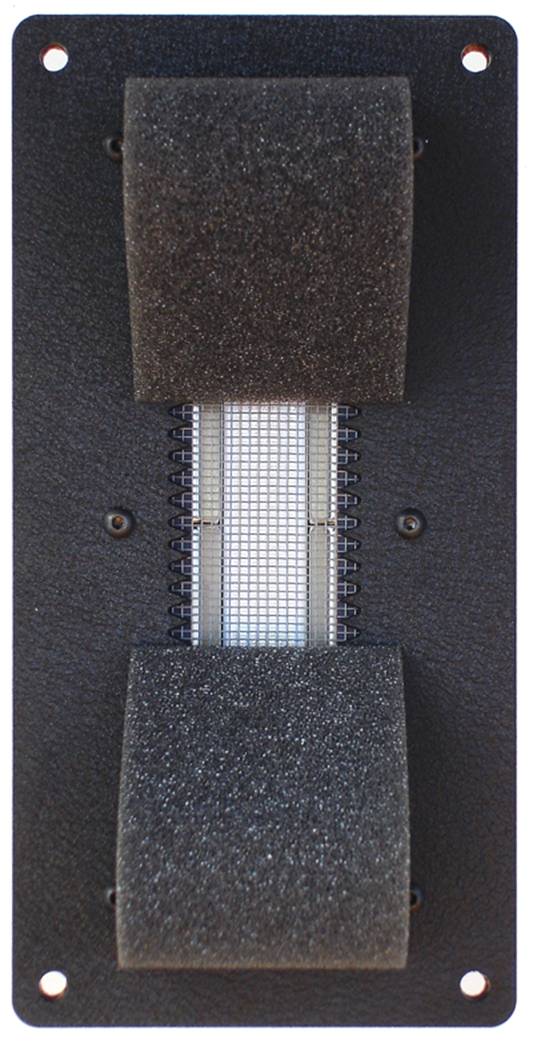

140-15D Ribbon Tweeter
(with optional Amorphous Core)
販売価格はお問い合わせください。

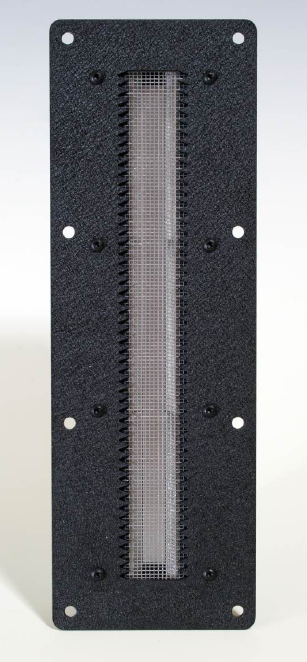

Lazy Ribbon 9" Ribbon Tweeter
