日本では残念ながら現時点であまり良いドライバーが輸入されていません。

評価の高いユニットをアップしました。

 平成24年からとても良いウーハーが販売されています。

   今年度(平成26年)も秀逸なウーハーが販売されています。

販売しているMorel社製品は全てホームオーディオ用です。

カーオーディオ専用の製品ではありません。

カーオーディオ用は専用のドライバーをお使いください。
ホームオーディオ用ドライバーをカーオーディオに使った場合のトラブルはメーカー保証がありません。

保証期間 1年間(メーカー規定範囲のみ)

MDT,MWシリーズは製造中止。流通在庫のみです。(10/22)



INTEGRA 624
integra624

同軸2WAY

販売価格はお問い合わせください。

PowerSlim 6 Ultra Shallow Woofer

powerslimpowerslim
Type: Ultra Slim Mid-woofer
Driver Model: Power Slim 6

•Slim TV bar speakers
•Aircraft
•Autosound

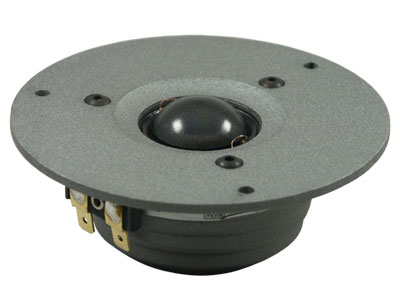

Titanium Supreme TSCT1104 Tweeter

http://www.morelhifi.com/wp-content/uploads/2015/05/TSCT1104-specs-sheet-a.pdf
販売価格はお問い合わせください。

TSCW636 Titanium Supreme Coppersleeve  Woofer
TSCM634 Titanium Supreme Coppersleeve Midrange

TiCW 634Nd 、TiCW 638Nd  6.5inchサイズの音質は特に素晴らしい!!

NEW   TiCW 1258Ft 12inch subwoofer

ticw1258ft
http://www.morelhifi.com/wp-content/uploads/2014/01/TiCW1258Ft.pdf

Since 1975, Morel has been on an ever-evolving quest to create the perfect, ultimate loudspeaker.
This dedication is apparent in every product they produce: tweeters, midranges, woofers, and finished systems that serve the Hi-Fi, home theater, and car audio markets.
Morel systems are today sold in more than 55 countries around the globe.
Their products are made with exceptional care; each is assembled by hand and extensively tested, undergoing seven different quality assurance steps, to ensure only the highest standards are met.
To create the Titanium Ultimate high fidelity 12" subwoofer, Morel uses an extra-large, 5.1" diameter, Hexatech™ aluminum voice coil wound on a vented titanium former.
Moving this massive cone requires huge amounts of magnetic force, so Morel uses a high flux double magnet system.
Speed-robbing energy storage is highly reduced (0.62 mH) through the combination of the titanium former and a copper-sleeved pole piece.
Trapped sound waves within the subwoofer are virtually inexistent due to the Uniflow™ cast aluminum chassis, which works with the Accucenter™ self-centering cone assembly to reduce distortion and the effects of power compression.

Design Features:
•Uniflow™ Aluminum diecast chassis
•High flux double Ferrite magnet system
•Coppersleeve Neolin Motor
•5.1" Large Hexatech™ Aluminum voice coil
•Titanium coil bobbin
•One piece paper cone/center dome
•Accucenter™ self centering cone assembly



New
TiCW1058FT Titanium Series 10inch Subwoofer

TiCW1058FT

http://www.morelhifi.com/wp-content/uploads/2014/01/TiCW1058Ft.pdf

Since 1975, Morel has been on an ever-evolving quest to create the perfect, ultimate loudspeaker. This dedication is apparent in every product they produce: tweeters, midranges, woofers, and finished systems that serve the Hi-Fi, home theater, and car audio markets. Morel systems are today sold in more than 55 countries around the globe. Their products are made with exceptional care; each is assembled by hand and extensively tested, undergoing seven different quality assurance steps, to ensure only the highest standards are met.
To create the Titanium Ultimate high fidelity 10" subwoofer, Morel uses an extra-large, 5.1" diameter, Hexatech™ aluminum voice coil wound on a vented titanium former. Moving this massive cone requires huge amounts of magnetic force, so Morel uses a high flux double magnet system.
Speed-robbing energy storage is highly reduced (0.52 mH) through the combination of the titanium former and a copper-sleeved pole piece. Trapped sound waves within the subwoofer are virtually inexistent due to the Uniflow™ cast aluminum chassis, which works with the Accucenter™ self-centering cone assembly to reduce distortion and the effects of power compression.

Design Features:
•Uniflow™ Aluminum diecast chassis
•High flux double Ferrite magnet system
•Coppersleeve Neolin Motor
•5.1" Large Hexatech™ Aluminum voice coil
•Titanium coil bobbin
•One piece paper cone/center dome
•Accucenter™ self centering cone assembly


New TSCW636 Titanium Supreme Coppersleeve  Woofer

tscw636

http://www.morelhifi.com/wp-content/uploads/2014/01/TSCW636.pdf

The Titanium Supreme midrange drivers from Morel are the latest leap forward in design.
Huge 3" Hexatech™ aluminum underhung voice coils (that use hexagonal shaped wire for high sensitivity and power handling) are wound onto titanium bobbins for amazingly low energy storage, resulting in lightning quick transients for superior attack and decay transients.
Qms is also raised, and allows for a wider range of enclosure options.
A Hybrid™ neodymium/ferrite Coppersleeve motor imparts high BL onto the voice coil while the copper-sleeved pole piece further reduces inductance

ホームオーディオの2WAYにお薦めする優秀なウーハーです。

New TSCM634 Titanium Supreme Coppersleeve Midrange
TSCM634

The Titanium Supreme midrange drivers from Morel are the latest leap forward in design.
Huge 3" Hexatech™ aluminum underhung voice coils (that use hexagonal shaped wire for high sensitivity and power handling) are wound onto titanium bobbins for amazingly low energy storage, resulting in lightning quick transients for superior attack and decay transients.
Qms is also raised, and allows for a wider range of enclosure options.
A Hybrid™ neodymium/ferrite Coppersleeve motor imparts high BL onto the voice coil while the copper-sleeved pole piece further reduces inductance.

http://www.morelhifi.com/wp-content/uploads/2014/01/TSCM634.pdf

高域が18KHzまで伸びているのでヨーロッパではフルレンジとして良く使われています。

情報量が大変多く、3D ,音質・・フルレンジとしても超優秀なドライバーです

Titanium range                                                             NEW 2012


This range supports reference quality woofers (and tweeters soon).
Their most interesting construction item is the titanium bobbin, where all other Morel units use aluminium instead.

SCM カーボンミッドより低音が出ます。





TiCW 634Nd
Reference quality 6,5" cone bass/wide midrange


  • UNIFLOW® diecast aluminium basket Ø 160mm
  • Milled, Injected Damped Polymer Cone (IDPC)
  • 75mm external aluminium Hexatech® voicecoil
  • Titanium former (bobbin)
  • Copper sleeve
  • Hybrid® vented neodymium/ferrite magnet system
  • Neolin®  motor
  • Extreme low distortion
  • Rigid 6,3mm goldplated tags


Note that this is a 4 ohm model.


Best performing in a vented 9,0 liter enclosure in 2-way systems.




TiCW 638Nd
Reference quality 6,5" cone bass/wide midrange


  • UNIFLOW® diecast aluminium basket Ø 160mm
  • Milled, Injected Damped Polymer Cone (IDPC)
  • 75mm external aluminium Hexatech® voicecoil
  • Titanium former (bobbin)
  • Copper sleeve
  • Hybrid® vented neodymium/ferrite magnet system
  • Neolin®  motor
  • Extreme low distortion
  • Rigid 6,3mm goldplated tags


Note that this is a 8 ohm model.






TiW 634Nd
Reference quality 6,5" cone bass/wide midrange


  • UNIFLOW® diecast aluminium basket Ø 160mm
  • Milled, Injected Damped Polymer Cone (IDPC)
  • 75mm external aluminium Hexatech® voicecoil
  • Titanium former (bobbin)
  • Hybrid® vented neodymium/ferrite magnet system
  • Extreme low distortion
  • Rigid 6,3mm goldplated tags


Note that this is a 4 ohm model.


Best performing in a vented 8,6 liter enclosure in 2-way systems.




TiW 638Nd
Reference quality 6,5" cone bass/wide midrange


  • UNIFLOW® diecast aluminium basket Ø 160mm
  • Milled, Injected  Damped Polymer Cone (IDPC)
  • 75mm external aluminium Hexatech® voicecoil
  • Titanium former (bobbin)
  • Hybrid® vented neodymium/ferrite magnet system
  • Extreme low distortion
  • Rigid 6,3mm goldplated tags


Note that this is a 8 ohm model.


Best performing in a vented 11,5 liter enclosure in 2-way systems.




New  Classic Advanced CAT328-104 Tweeter





8 ohm, 90dB, 104mm flange

Spec sheet:

http://www.moreleurope.com/data/mediablocks/CAT328-104.pdf

Features:

  • 104mm IDR™ Improved Dispersion Recess aluminum face plate
  • Large Hexatech™ Aluminum voice coil
  • Replaceable Acuflex™ dome / coil assembly
  • Ferro fluid cooled
  • High power handling
  • Sturdy gold plated input tabs

販売価格はお問い合わせください


SCM634



Reference quality 6,5" cone bass/wide mid/full/range



· UNIFLOW® diecast aluminium basket Ø 160mm

· TRUE Carbonfibre/Rohacell/Carbonfibre sandwich cone

· 75mm external aluminium Hexatech® voicecoil

· Underhung geometry

· Copper sleeve

· Hybrid® vented neodymium/ferrite magnet system

· Extreme low distortion

· Rigid 6,3mm goldplated tags

Note that this is a 4 ohm model.

Best performing in a sealed 4,5 liter or even in a vented

20-25 liter enclosure, both performing at best in an

absolute reference quality system.









高域が18KHまで伸びているのでヨーロッパではフルレンジとして使われています。



“Excellent full range unit”.



This first adventure was simply already unbelievable due to 3D, warmth, etc. Let’s say in one word: MUSIC.









フルレンジとして評価してもかなりの完成度のドライバーです。



補正回路をいれれば更に音質アップします。



(音質が悪化しますので安物のコンデンサー、コイル、抵抗は使わないでください。)



同サイズのメタルコーン、安価なペーパーコーンフルレンジの音は聴けなくなります。



販売価格はお問い合わせください。




The idea of designing this Supreme 614 is based on the fact that German Klang & Ton as well as Hobby Hifi magazines tested the MOREL SCM 634 Midrange unit and both gave it the status of “Excellent full range unit”.
 Based on their measurements it would perform very well in a ported cabinet of about 20 liters with a range of around 30-18.000Hz. And it DOES !
Designing a full range is new for our designer Louis Timmers and he had to face some things never done before, it took some more time to develop it, despite the fact that is a most simple design.
In order to check this new status of the SCM 634 we mounted it in our CA625 cabinet and drove it full range.
This first adventure was simply already unbelievable due to 3D, warmth, etc. Let’s say in one word: MUSIC.

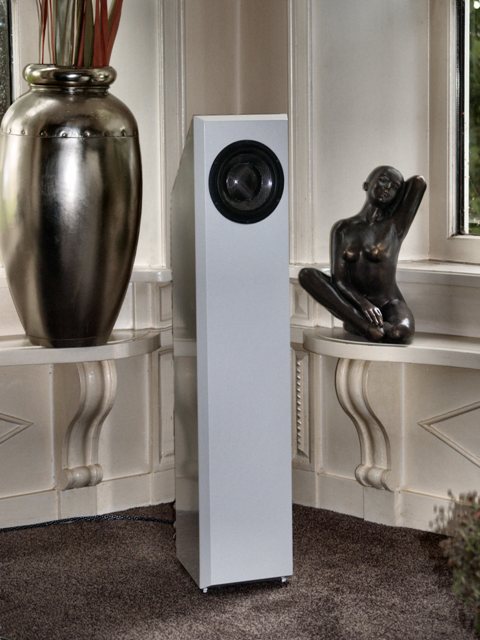

 This unit obviously deserved to be built in a very nice looking cabinet and make MUSIC.
After some experiments with different shapes, we decided for a some smaller cabinet as both magazines had calculated, in order to achieve the best overall performance instead of maximum bass.
It has a great appeal with its triangular shape and roof-like top panel. This top panel isn’t just there for the looks, it also reflects the waves down into the cabinet.
A port in the front didn’t look nice and also generates to much midrange in this full range design, so we had to come up with something else.
 Since the back is only 50mm wide this was no option and so, only the bottom was left. So, this speaker needs to be placed on spikes in order to let the port do what it is meant to do: generating fantastic low frequencies, actually going way deeper as you would expect from a 16cm unit in a cabinet like this.
You can even tune the bass by lifting the speaker more or less from the floor.
On the other side, a 16cm woofer with a “regular” looking cone can never produce 18k, right? Wrong ! It simply DOES, due to all the key features MOREL company has in house, to start with the unique, shallow carbon fiber/ Rohacell/carbon fiber sandwich cone.
 Then the ultra light (4 ohms to save weight) aluminum Hexatech voice coil in underhung configuration, a copper sleeve to minimize EMF and flattening impedance curve by nature, a hybrid magnet system, ultra stiff Uniflow basket, very long throw despite “midrange” classification, etc.
I listened to this system for months before presenting it and every day I enjoy my music and movies.
This system appears NOT to have all the flaws noticed in so many full range systems. WHAT it is bundling from 4k up, WHAT it is intermodulating high frequencies, WHAT is has no power, WHAT there is no punch, WHAT about metal instruments don’t sing, WHAT about sharp S and T sounds, WHAT about tube like hollow sound in midrange and screaming in your face as about all fullranges appear to do????? I don’t know why and I don’t care, this system has none of these flaws; it is all as it should be as hundreds of people noticed at Dutch X-Fi show 29-30 sept. 2012.

Obviously sometimes you have to put aside all the “meanings” and think/look/listen some further…….. The 6moons team checked it: http://www.6moons.com/audioreviews/eltim/1.html


ScanSpeak Revelator15W/4531G00からSCM634に変更されたA様からのメールです。
(カーオーディオで使用)

SCM634は素晴らしいです!! と言うより凄いです。

ただ今,エージング真っ最中ですがレンジ全体の高解像度、ペーパーコーンに負けないハイスピード・切れ味。
上から下までハイセンスでポテンシャルの高い音を鳴らしてくれます。

購入されたA様からの第2報です。

SCM634はエージングが進むにつれスピード感、音の臨場感、解像度がすごく際だってきました。

すごいです。

カーオーディオマニアの友人たちにも評判です。

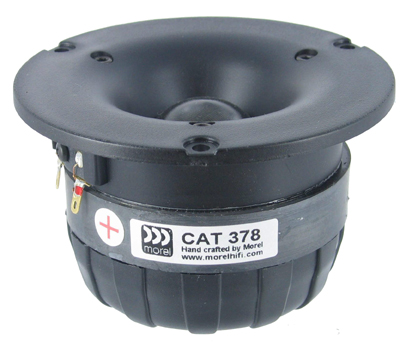

CAT378 Morel Horn Tweeter

Morel CAT378 Morel Horn Tweeter

フレームは硬質プラスチック製

·         94mm Horn Loading Face Plate

·         Hand coated fabric dome

·         Hexatech aluminum voice coil

·         Replaceable dome/coil assembly

·         High sensitivity (93dB)

·         Gold plated terminals





Nominal Impedance 8 ohm
Resonance frequency 700Hz
Power 200W (DIN)
Frequency range 2000 to 22,000Hz
See pdf for more specs and curves.

Dimensions:
94mm diameter flange (3.7")
72mm diameter cut out hole size (2.9")
55mm depth (2.2")

Voice coil replacement code: R-37

販売価格はお問い合わせください。

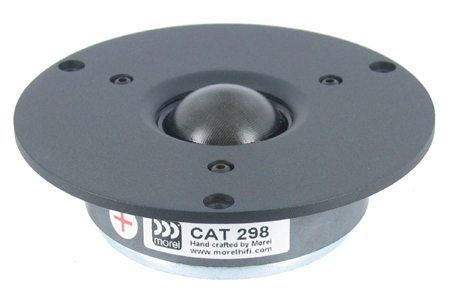

CAT298 1" Soft Dome Tweeter

Morel CAT298 1" Soft Dome Tweeter

Classic Advanced Series

  • 104mm aluminum face plate (4.1")
  • Replaceable voice coil assembly
  • Ferro fluid cooled
  • Gold plated terminals
  • Acuflex hand coated textile dome

Frequency response 2500Hz to 20,000Hz
8 ohm Impedance
80W power handling
89dB Sensitivity

Fs 900Hz
Re 5.2 ohm
Le 0.05mH
Copper VC wire
Mms 0.5g
Sd 6.0 cm2

Flange diameter: 104mm (4.1")
Cut out diameter: 72mm (2.84")
Depth: 27mm (1.06")

See pdf file for curves.

Voice coil replacement code: R-29

販売価格はお問い合わせください。


CAT308 1" Textile Dome Tweeter

Morel CAT308 1" Textile Dome Tweeter

Classic Advanced Series

  • 104mm aluminum face plate (4.1")
  • Replaceable voice coil assembly
  • Hexatech aluminum voice coil
  • Ferro fluid cooled
  • Gold plated terminals
  • Acuflex hand coated textile dome

Recommended frequency range 2,000Hz to 20,000Hz
8 ohm Impedance
90dB Sensitivity
200W power handling

Fs 650Hz
Re 5.2 ohm
Le 0.09mH
Mms 0.44g
Sd 6.0 cm2

Face plate diameter: 104mm (4.1")
Cut out diameter: 72mm (2.84")
Depth: 43mm (1.7")

Voice coil replacement code: R-30



販売価格はお問い合わせください。


UW1058 10" Ultimate Subwoofer

Morel UW1058 10" Ultimate Subwoofer - Each

  • 10" One piece Composite Cellular Fiber Cone
  • Uniflow aluminum diecast chassis
  • High flux double ferrite magnet system
  • 5.1" Hexatech Aluminum voice coil
  • Raised spider





  Nominal Impedance 8 ohm
Sensitivity 85.8 dB
Nominal power handling 500W
Overall dimensions: 263mm diameter (10.35"), Depth 148.5mm (5.84")
Cut out diameter: 241mm (9.5")
Aluminum VC former and Aluminum VC wire, 5.1" diameter VC, 2 layer
12.5mm Linear X-max (peak)

Fs 26 Hz
Re 6.8 ohm
Qms 1.72
Qes 0.58
Qts 0.43
BL 15.3 N.A.
Cms 0.24 mm/N
Rms 11.69 Kg/s
Mms 99.3g
Vas 40.8 Liters
SD 346 cm2
Le 1.33 mH



Recommended enclosure:
1.75 cubic feet with a 3" diameter flared port by 12" long.  F3 is about 32Hz.
For autosound, use 0.75 cubic foot sealed for an F3 of 35Hz (assuming 6dB of cabin gain)

販売価格はお問い合わせください。


UW1258 Ultimate 12" Subwoofer

Morel UW1258 Ultimate 12" Subwoofer - Each

  • 12" One piece Composite Cellular Fiber Cone
  • Uniflow aluminum diecast chassis
  • High flux double ferrite magnet system
  • 5.1" Hexatech Aluminum voice coil
  • Raised spider


Nominal Impedance 8 ohm
Sensitivity 87 dB
Nominal power handling 800W
Overall dimensions: 305mm diameter (12"), Depth 154.3mm (6.07")
Cut out diameter: 270mm (10.7")
Aluminum VC former and Aluminum VC wire, 5.1" diameter VC, 2 layer
12.5mm Linear X-max (peak)



Fs 21 Hz
Re 6.8 ohm
Qms 1.88
Qes 0.56
Qts 0.43
BL 13.67 N.A.
Cms 0.44 mm/N
Rms 8.15 Kg/s
Mms 105.49g
Vas 138.38 Liters
SD 437 cm2
Le 1.33 mH


Recommended enclosure:

販売価格はお問い合わせください。


UW958, 9" Ultimate Subwoofer with 5.1" VC

Morel UW958,  9" Ultimate Subwoofer with 5.1" VC

Ultimate Subwoofer range - 5.1" large External Voice Coils, Uniflow aluminum diecast chassis, PFS, DMM

Ultimate Subwoofer, 9" diameter, 5.1" External voice coil, 8O PFS™ - Progression Field Symmetry spider/surround technology, DMM™ - Double Magnet Motor - high grade vented Ferrite magnets, Uniflow aluminum die cast chassis, Rigid structure one piece paper cone. 500W(rms) power handling.

Equipped with a gigantic 5.1” Hexatech External Voice coil (EVC™), and constructed of a heavy gauge high temperature aluminum wire and an extra thick aluminum former, the UW958 produces 500W(rms) power output. The new DMM™ motor design achieves over 90% efficiency and the PFS™ spider/surround technology ensures maximum linearity, minimum distortion, and truly flat response.

販売価格はお問い合わせください。


CAW428 4" Woofer

Morel CAW428 4" Woofer

Classic Advanced Series

  • Uniflow steel chassis
  • Neodymium magnet system
  • 2.1" large Hexatech voice coil
  • High power handling
  • Shallow profile DPC cone



Frequency response 75Hz to 3000Hz
8 ohm Impedance
150W Power Handling (DIN)
88dB Sensitivity (1W/1M)
2.1" diameter voice coil, 2 layer
4mm X-max (peak)

Fs 74 Hz
Re 5.5 ohm
Le 0.32mH
Qms 2.33
Qes 0.46
Qts  0.38
BL  5.0
Cms 1.007 mm/N
Mms 4.55g
Rms 0.91 Kg/s
Vas 4.5 liters
Sd 57 cm2

Flange diameter: 118.5mm (4.66")
Cut out diameter: 94mm (3.7")
Depth: 51mm (2")


Suggested box sizes:
0.1 cubic foot vented box with 1" diameter vent by 3" long for and F3 of 95Hz.
0.1 cubic foot sealed box for an F3 of 150Hz.

販売価格はお問い合わせください。


CAW538 5" Woofer

Morel CAW538 5" Woofer

  • Uniflow aluminum diecast chassis
  • High flux double ferrite magnet system
  • 3" Hexatech aluminum voice coil
  • High power handling
  • Shallow profile Damped Polymer Composite cone

Frequency response 50Hz to 3500Hz
8 ohm Impedance
150W Power Handling (DIN)
86dB Sensitivity (1W/1M)
3" diameter voice coil, 2 layer
3mm X-max (peak)

Fs 49 Hz
Re 5.2 ohm
Le 0.47mH
Qms 1.83
Qes 0.48
Qts  0.38
BL  6.9
Cms 0.72 mm/N
Mms 14g
Rms 2.39 Kg/s
Vas 8.2 liters
Sd 90 cm2



Flange diameter: 143mm (5.62")
Cut out diameter: 121mm (4.76")
Depth: 60mm (2.36")

Suggested box sizes:
0.2 cubic foot vented box with 1" diameter vent by 4" long for and F3 of 65Hz.
0.15 cubic foot sealed box for an F3 of 100Hz.

販売価格はお問い合わせください。


CAW638 6" Woofer

Morel CAW638 6" Woofer

Classic Advanced Series

  • Uniflow aluminum diecast chassis
  • High flux double ferrite magnet system
  • 3" Hexatech aluminum voice coil
  • High power handling
  • Shallow profile Damped Polymer Composite cone

Frequency response 45Hz to 5000Hz
8 ohm Impedance
150W Power Handling (DIN)
86dB Sensitivity (1W/1M)
3" diameter voice coil, 2 layer
4.25mm X-max (peak)

Fs 44 Hz
Re 6.4 ohm
Le 0.63mH
Qms 2.2
Qes 0.58
Qts  0.46
BL  7.3
Cms 0.792 mm/N
Mms 16g
Rms 2.04 Kg/s
Vas 15.7 liters
Sd 119 cm2

Flange diameter: 160mm (6.3")
Cut out diameter: 140mm (5.52")
Depth: 63mm (2.5")



Suggested box sizes:
0.4 cubic foot vented box with 1.5" diameter vent by 5.25" long for and F3 of 50Hz.

0.25 cubic foot sealed box for an F3 of 75Hz.

販売価格はお問い合わせください。

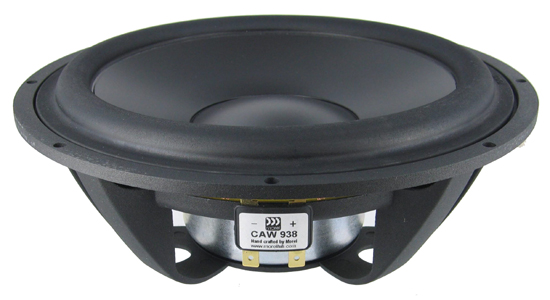

CAW938 9" Woofer

Morel CAW938 9" Woofer

Classic Advanced Series

  • Uniflow aluminum diecast chassis
  • High flux double ferrite magnet system
  • 3" Hexatech aluminum voice coil
  • High power handling
  • Shallow profile Damped Polymer Composite cone

Frequency response 35Hz to 3000Hz
8 ohm Impedance
150W Power Handling (DIN)
87dB Sensitivity (1W/1M)
3" diameter voice coil, 2 layer
4.25mm X-max (peak)

Fs 31 Hz
Re 6.4 ohm
Le 0.61mH
Qms 2.59
Qes 0.80
Qts  0.60
BL  7.05
Cms 0.763 mm/N
Mms 294g
Rms 2.4 Kg/s
Vas 51 liters
Sd 219 cm2


Flange diameter: 222mm (8.75")
Cut out diameter: 198mm (7.79")
Depth: 71mm (2.8")

Suggested box sizes:
Vented box - not recommended
2.0 cubic foot sealed box for an F3 of 43Hz.

販売価格はお問い合わせください。


 EW428, 4" Elite Woofer, 2" VC

Morel EW428, 4" Elite Woofer, 2" VC

  • Uniflow™ steel chassis
  • Neodymium magnet system
  • 2.1" Large Hexatech™ Aluminum voice coil
  • High power handling
  • Shallow profile D.P.C cone
  • High linear excursion

販売価格はお問い合わせください。

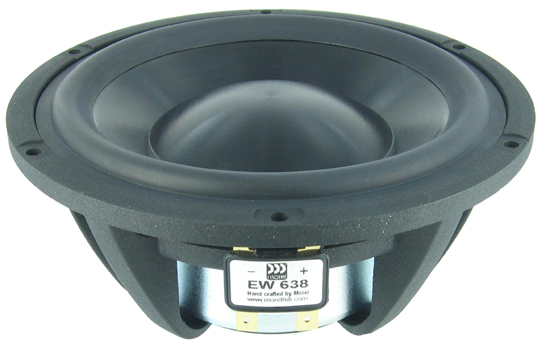

EW638, 6" Elite Woofer, 3" Voice Coil

Morel EW638, 6" Elite Woofer, 3" Voice Coil

  • Uniflow™ Aluminum diecast chassis
  • Hybrid™ Neodymium/Ferrite magnet system
  • 3" Large Hexatech™ Aluminum voice coil
  • High power handling
  • High Xmax, Low

販売価格はお問い合わせください。

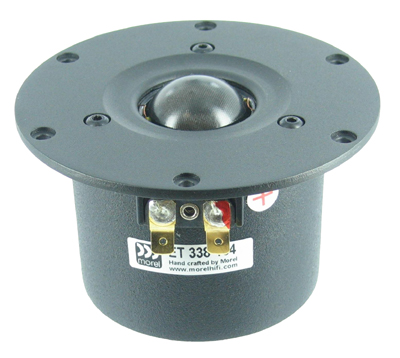

Elite ET338-104

1" Textile Dome Tweeter (104mm)



  • 104mm aluminum face plate
  • Large Hexatech aluminum voice coil
  • Acuflex textile dome (replaceable)
  • Triple magnet system
  • High power handling
  • Gold plated terminals
  • Sold each. When purchasing two, you will receive a factory matched pair.

·         Dimensions:

·         Overall diameter 104mm
Cut out diameter 76mm
Depth 63mm
Flange thickness 3mm
Mounting hole location diameter 94mm
Mounting holes at 60 degree intervals, 3.7mm diameter



ソフトドームの最高峰Dynaudio T330Dより自然な音で良いという方も多いです。

販売価格はお問い合わせください。


ST 728

Supreme Tweeter

販売価格はお問い合わせください。

http://www.morelhifi.com/products/pdf/Tweeters/ST/Specs sheet ST728.pdf

 Morel ST 728 Supreme Tweeter, Ø 72mm, 8 ohm

Underhung voice coil
Large Hexatech™ aluminum voice coil
72mm IDR™ Improved Dispersion Recess aluminum face plate
Replaceable Acuflex™ dome / coil assembly
Neodymium flat pancake design magnet
High power handling

General Data
Overall Dimensions DxH 72mm(2.83")x53mm(2.08")
Nominal Power Handling (DIN) P 120W
Transient Power 10ms 1,000W
Sensitivity 2.83V/1M 91dB SPL
Frequency Response See graph
Dome Material Acuflex™ hand coated soft dome
Net Weight Kg 0.21

Electrical Data
Nominal Impedance Z 8 ohms
DC Resistance Re 5.2 ohms
Voice Coil Inductance @ 1KHz LBM 0.05mH
Voice Coil and Magnet Parameters
Voice Coil Diameter DIA 28mm
Voice Coil Height 2.7mm
HE Magnetic Gap Height HE 4.6mm
Max. Linear Excursion X 0.95mm
Voice Coil Former Aluminum
Voice Coil Wire Hexatech™ Aluminum
Number Of Layers 2
Magnet System Type Neodymium Flat Pancake
B Flux Density: B
BL Product: BXL

T-S Parameters
Mechanical Q Factor Qms 0.8
Electrical Q Factor Qes 0.65
Total Q Factor Qts 0.36
Moving Mass Mms 0.44 g
Resonant Frequency Fs 800 Hz
Effective Piston Area SD 6.0 cm²


ST 1048

 Supreme Tweeter

ブラックタイプも販売されています。

販売価格はお問い合わせください。

http://www.morelhifi.com/products/pdf/Tweeters/ST/Specs sheet ST1048.pdf

Morel ST 1048 Supreme Tweeter, Ø 104mm, 8 ohm

Underhung voice coil
Large Hexatech™ aluminum voice coil
104mm IDR™ Improved Dispersion Recess aluminum face plate
Replaceable Acuflex™ dome / coil assembly
Neodymium flat pancake design magnet
High power handling

General Data
Overall Dimensions DxH 104mm(4.09")x40mm(1.57")
Nominal Power Handling (DIN) P 220W/12dB
Transient Power 10ms 1000W
Sensitivity 2.83V/1M 91.5dB SPL
Frequency Response See graph
Dome Material Acuflex™ hand coated soft dome
Net Weight Kg 0.435

Electrical Data
Nominal Impedance Z 8 ohm
DC Resistance Re 5.2 ohm
Voice Coil Inductance @ 1KHz LBM 0.09mH
Voice Coil and Magnet Parameters
Voice Coil Diameter DIA 28mm
Voice Coil Height 2.7mm
HE Magnetic Gap Height HE 4.2mm
Voice Coil Former Aluminum
Voice Coil Wire Hexatech™ Aluminum
Number Of Layers 2
Magnet System Type Neodymium Flat Pancake
B Flux Density B 1.8 T
BL Product: BXL

T-S Parameters
Moving Mass Mms 0.44 g
Eq. Cas Air Load (liters) VAS
Resonant Frequency Fs 680 Hz ±10%
Effective Piston Area SD 6.0 cm²


SCW636

Supreme   6" Woofer

販売価格はお問い合わせください。



§   3 Layer Cone: Carbon Fiber / Rohacell Foam / Carbon Fiber
§    Copper sleeve on pole piece
§     Uniflow aluminum die cast frame
§
3" large Hexatech Aluminum Voice Coil
§      Neodymium / Ferrite Hybrid Magnet System

Fs 40Hz
6 ohm Nominal Impedance
87dB Sensitivity 2.83V@1M
150W power handling
3" diameter voice coil
5mm X-max peak

Re 4.5 ohm
Qms 1.76
Qes 0.35
Qts 0.29
Vas 18.5 liters
Mms 16g
Sd 119 cm2
Le 0.29mH @ 1kHz
BL 7.2 NA
Cms 0.969 mm/N
Rms 2.31kg/s

Dimensions:
160mm flange diameter (6.3")
140mm cut out diameter (5.5")
63m depth (2.5")


See pdf file for curves, specs and dimensions.

Recommended Enclosures:

For vented box of 0.25 cubic feet, 1.5" diameter vent by 6" long, F3 of 63Hz.
For sealed box of 0.1 cubic feet, F3 of 115Hz


ET338

Elite  1" textile dome tweeter



販売価格はお問い合わせください。

110mm aluminum face plate

Large Hexatech aluminum voice coil

Acuflex textile dome (replaceable)

Triple magnet system

 28mmソフトドームツィーターユニット
再生周波数:1.8kHz-20kHz
インピーダンス:
音圧レベル:92.5dB
許可入力(通常)200W
許可入力(瞬間)1000W
重量:1.08kg



ソフトドームの最高峰Dynaudio T330D(エソター)より自然な音で良いという方も多いです。
Morel 2-WAY

 ST1108

Supreme  tweeter

販売価格はお問い合わせください。



SPECIFICATIONS: Supreme 110
Overall Dimensions 110 (110mm)
Nominal Power Handling P 220W 12dB@2200Hz
120W 6dB @2200Hz
Transient Power - 10ms 1000W
Nominal Impedance Z 8 W
Sensitivity (2.83V@1M) 91.5dB
Frequency Response 1400 - 22,000Hz
Resonant Frequency Fs 680Hz
Voice Coil Diameter Ø 28mm (1.1")
Voice Coil Height 2.7mm (0.106")
Voice Coil Former Aluminum
Voice Coil Wire Hexatech Aluminum
Number Layers 2
DC Resistance Re 5.2 W
Voice Coil Inductance LBM 0.09mH @ 1KHz
Magnet System Type Neodymium flat pancake
Magnetic Gap Height He 4.2mm (0.16")
Dome Material Acuflex? Coated Textile

Net Weight Kg 0.52 Kg.
