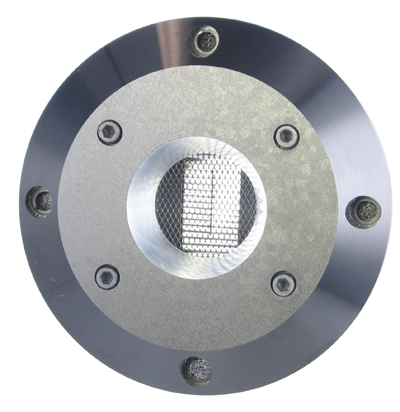

LCY-K100 Ribbon Super Tweeter
90mm diameter flange
The LCY Ribbon tweeter is based on technology well proven by audio
pioneers for over half a century but is innovatively designed to satisfy
the sophisticated demands of the digital era.
The LCY has a unique design employing twin ribbons of half the length of conventional ribbons in order to control vertical plane dispersion. Thus it reproduces both vertically and horizontally as effectively as voice-coil operated dome tweeters but with the accuracy, elegance and refined timbres of ribbon-tweeter technology. Magnetic flux density is enhanced by the use of our own neodymium magnet system and a sophisticated transformer with parallel multi-wiring OFC has been adopted for superior frequency and power handling and optimal size.
Frequency Response: 7KHz-100KHz
Sensitivity : 95dB / 2.83V / 1M
Nominal Impedance : 8��
Magnet Type: Neodymium magnet
Ribbon Effective Area: 375mm2
Ribbon Length : 25mm
Ribbon Thickness : 0.006mm
Nominal Power Handling : 200W(7KHz/-18dB/oct),
300W(10KHz/-18dB/oct)
Dimensions:
Flange diameter: 90mm
Cut out: 65mm x 43mm -or- 70mm diameter
Depth: 67mm
Flange thickness: 5mm
�@
