Audio Technology

Fulex Unitsは全て受注生産です。 製造に1カ月前後かかります。

Flex Unitsの良いところは磁石、ボイスコイル特注可能です。

また Sandwich cone が使えるところとフレームが大変堅固です。

Flex Unitsはとても素晴らしいユニットですが、高額ですので音質等もほとんど変わらないC-Quenze Unitsもお薦めです。

フレームは鋳物からアルミダイキャストになります。
1回注文数は2ペア以上です。

Drivers with Sandwich Cone

In the FLEXUNITS Program, we have brought you two new drivers with cones based on an entirely new technique. The cones are made from two thin carbon reinforced paper cones, which are glued together with an expanding foam, using a support tool, to keep the cone in
the correct shape. The foam is well damped to avoid resonances in the cone. The result is an extremely rigid and stiff cone, presenting fast, uncoloured and distortion free bass.


Edge of sandwich cone


Bass even at low amplitude.

The KA system is implemented in the Sandwich cone drivers and is a mixture of Kapton and Aluminium voice coil bobbin. This means, the driver acts as a pure Kapton voice coil driver, as long as the voice coil is within its linear working area. It also presents a very low mechanical resistance, which allows the driver to play bass with authority, even at low levels.

All drivers are naturally generously ventilated, under the spider, from voice coil gap and not least through the pole piece, allowing the whole moving system to travel fast and freely, without any compression.


New 15 inch.

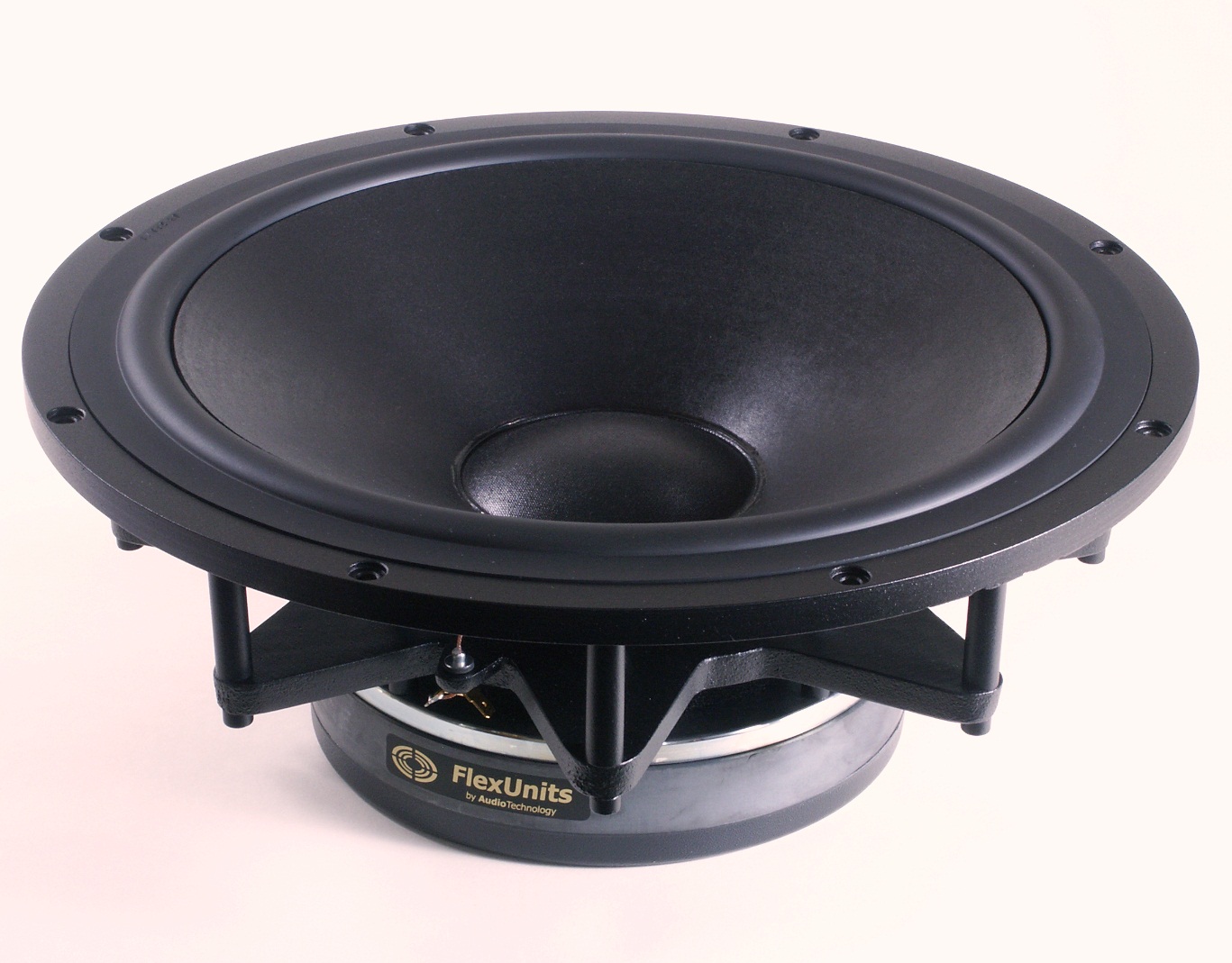

Flexunits 15 F 102 25 10 KAP
Yet another fast, super tight sounding woofer, with ultra low distortion and all the usual virtues from Audiotechnology. Generously ventilated, under the spider, from voice coil gap and not least through the pole piece, allowing the whole moving system to travel fast and freely, without any compression.



Effective Cone Area 835 Cm2
Nominal Impedance 8

Ohm

Resonance Frequence 22 Hz
Equivalent Air Volume 410 Ltrs.
Mecanical Q Factor 6,93
Electrical Q Factor 0,3
Total Q Factor 0,29
Acceleration Factor 148
Nominal Power Handling 400 W
Efficiency 94 dB
Frequency response 20-1.000 Hz
DC resistance 6 Ohm
Compliance 0,415 mm/Nm
Mechanical res. 2,49 Kg/s
VC inductance 0.76 mH
Moving mass 126 g
Force factor 18,7 N/A
Linear excursion (x-max) 8.6 mm
Max. excursion (P-P) 46 mm
15E1


Flex Units

Flex Unitsは全て受注生産です。 製造に1カ月前後かかります。
4H521306
販売価格はお問い合わせください。
16cm Polypropylene Cone Mid-Bass, with 52mm Voice Coil
Technical documentation

5H521506
販売価格はお問い合わせください。
18cm Polypropylene Cone Woofer, with 52mm Voice Coil
Technical documentation

6H521706
販売価格はお問い合わせください。
21cm Polypropylene Cone Woofer, with 52mm Voice Coil
Technical documentation

8I522008
販売価格はお問い合わせください。
23cm Polypropylene Cone Woofer, with 52mm Voice Coil
Technical documentation

15E1022510

販売価格はお問い合わせください。
41cm Paper Cone Woofer, with 102mm Voice Coil .

保証期間 1年間(メーカー規定範囲内)
ScanSpeak Woofers(Revelator,classic,discovery)の不満を解消してくれる優秀なウーハー群と言われています。
ただしRevalator シリーズの柔らかいクラシック向きの音質はAudio technologyより好ましいと思います。
音質の好みは個人でかなり異なりますがilluminator シリーズの方Audio technologyより音質は良いと思います。
Audio technology Woofersはアンプをかなり選びます。アンプによっては全く鳴らせない。
