ATD
現在ATD社(Italy)はmagico社にNano-Tec・ driver(woofer)を提供しています。
http://www.electori.co.jp/magico.html

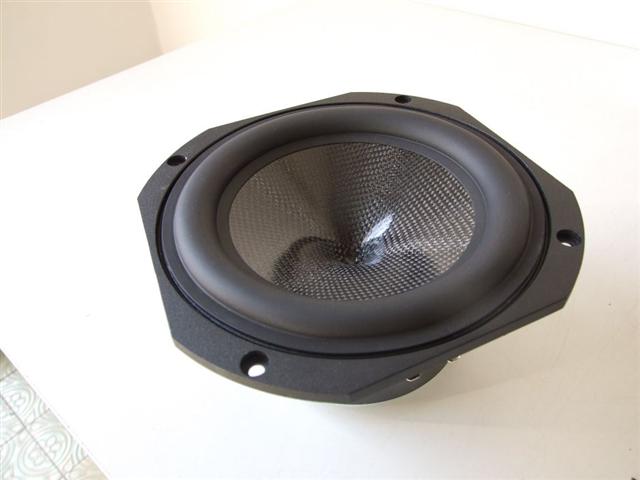

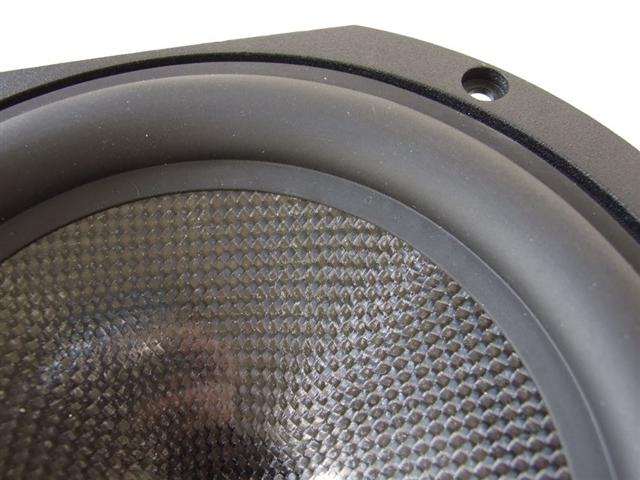

Nano Carbon cone Woofer
8W5008NC
(7inch Woofer)
販売終了しました。(H26/1/4)
the specs
54mmVoiceCoil
Sensitivity : 88db/W/m
Fs : 28.5 Hz
Qms : 5.14
Qes : 0.37
Qts : 0.35
Vas : 60 litres
Re : 6.9 Ohm
This unit is also available in 4 Ohm ( DCR 3.5 Ohm ) ,
with a dual sequential coil , T/S is roughly the same.
The unit should be used up to 1.8 KHz ,
the Scan R29 , illuminator D3004 or an Mundorf AMT tweeter are a good choice.
上記の通り 4Ω、8Ωタイプがあります。
1ペア98,800円(税込)
Mr.Joseph Szallからのメールです。
The 2 products are very similar , the Magico has a 75 mm voice-coil and Neo magnet ,
the product I am selling OEM to other companies has a 54 mm voice-coil
and a ferrite magnet and has superior perfromance.
5月末から6月の販売を予定しています 。 一部改良(日本仕様)改良しているためです。

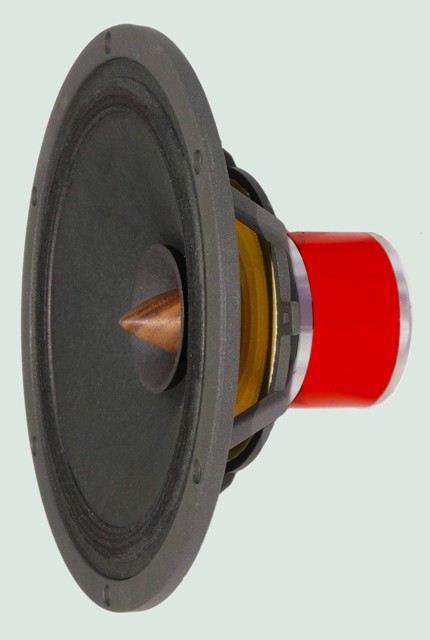

Impedance 8 or
16 Ohm
Fs 50.4 Hz
Qts 0.35
Qms 7.2 Qes 0.37 Mms 10.7 g Vas 69.4 L Sensitivity 1W/1M 95.2db
Vc 25mm
Frequency
bandwidth: 50 Hz–16KHz(
20KHz :-4dB)
|

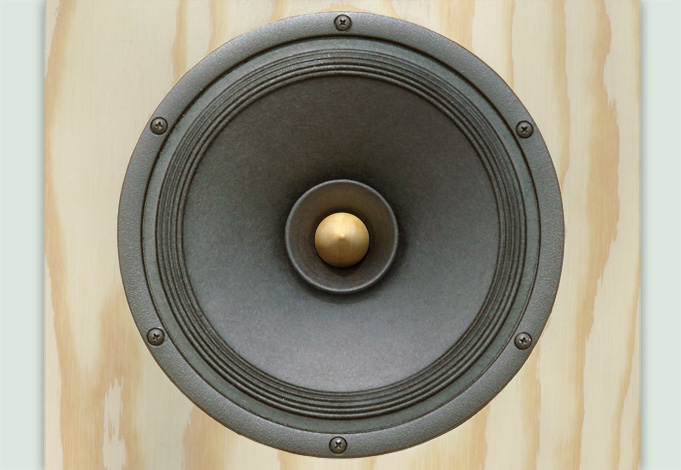

Impedance 8,16
Ohm
Fs 51.2 Hz
Qts 0.36
Qms 7.2 Qes 0.36 Mms 10.8 g Vas 70.2 L Sensitivity 1W/1M 95.2db
Vc 25mm
Power handling
50W
Frequency
bandwidth: 50 Hz–20KHz
|
