Propeller

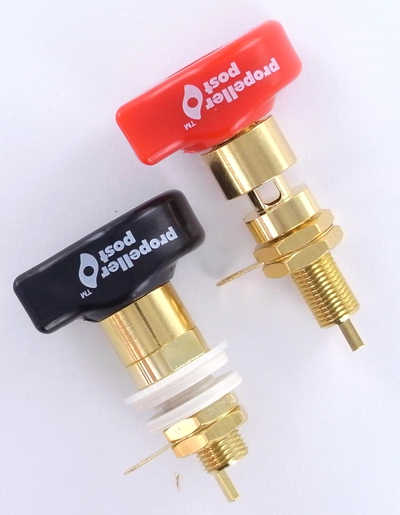

Propeller Post 16mm Tellurium Copper with Gold Plating

1ペア(2本)　８，５００円（税別）







• Tellurium Copper with Gold Plate
• 16.5mm long threaded shaft (0.65")
• Use with banana, spade(6.5mm) or cable entry (2.9mm x 3.9mm opening)
• Connect from inside with solder tab or direct solder to post

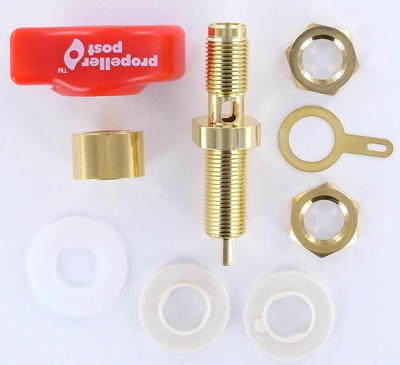

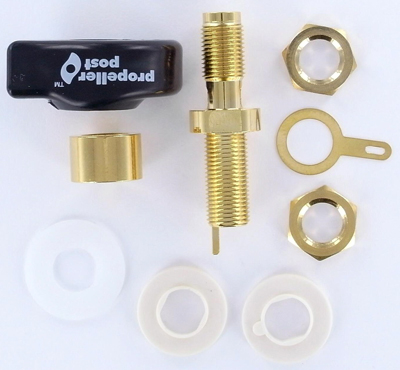

• Comes with 2 solder tabs (3.4mm), 4 gold plated brass nuts, 4 shoulder washers, 2 flat washers
• Use a 11mm wrench to hold post during mounting (7/16")
• Use a 5/16" diameter hole for mounting (8mm)
• The shoulder washers are used when mounting into a steel plate to isolate the post from the plate

Tellurium Copper is 99.5% Copper (Cu) and 0.5% Tellurium (Te) along with trace amounts of Silver and Phosphorus.  Tellurium is added to the copper to improve the metals machinability.  Propeller posts are designed by Virtue Audio: www.virtueaudio.com.

Shaft threading is M8 x 0.75
Flat washer       is  8mm OD
Shoulder washers are 16.5mm OD and made for 9.25mm hole, one is notched

Minimum 33mm post spacing so propellers don't touch each other.

---

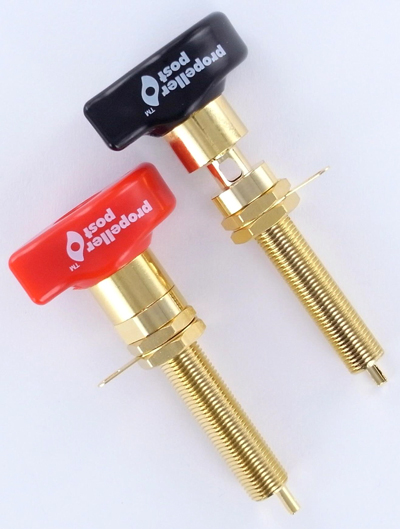

Propeller Post 35mm TC Binding Post

１ペア(２本)9,８００円(税別)



• Tellurium Copper with Gold Plate
• 35mm long threaded shaft (1.37")
• Use with banana, spade(6.5mm) or cable entry (2.9mm x 3.9mm opening)
• Connect from inside with solder tab or direct solder to post

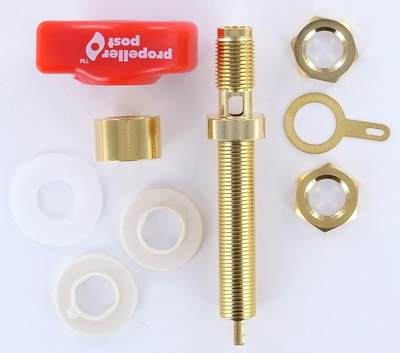

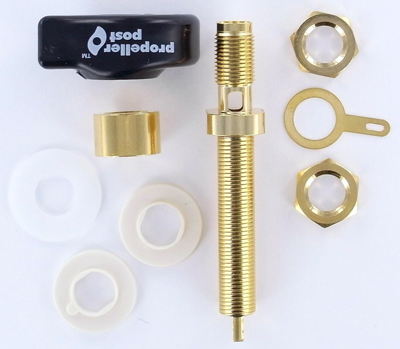

• Comes with 2 solder tabs (3.4mm), 4 gold plated brass nuts, 4 shoulder washers, 2 flat washers
• Use a 11mm wrench to hold post during mounting (7/16")
• Use a 5/16" diameter hole for mounting (8mm)
• The shoulder washers are used when mounting into a steel plate to isolate the post from the plate

Tellurium Copper is 99.5% Copper (Cu) and 0.5% Tellurium (Te) along with trace amounts of Silver and Phosphorus.  Tellurium is added to the copper to improve the metals machinability.  Propeller posts are designed by Virtue Audio: www.virtueaudio.com.

スピーカー端子も安物でなく、このクラスのものくらいは使ってほしいです。

（クリアーで情報量も多く滑らかな音質）
