The B1371 incorporates three of the latest cutting edge drivers from the Revelator line.

Holding down bass duty is the robust 32W/4878T-0113", Scan-Speaks most powerful woofer to date.

Midrange is covered by the high efficiency18M/4631T 7" sliced paper cone mid driver.

High frequency reproduction is carried by the top of the lineD2908/7140 1"Beryllium dome tweeter.

Assembled Crossover Information

Madisound hand assembles each crossover to order.

We use premium parts throughout to compliment these incredible Revelator drivers.

All parts are terminated with 3% silver solder to our silver tinned copper circuit boards.

The series tweeter circuit comes standard with Mundorf McapSupreme caps

The shunt circuit uses a with Clarity Cap CSA for the large 150 mfd value required.

The series midrange circuit comes standard with Clarity Cap CSA capacitors run in parallel to achieve the required 120 mfd & 220 mfd values.

The main series inductor is a Goertz Copper Foil 0.75mH 14 awg.
The series woofer circuit utilizes ultra low resistance Sledgehammer 15awg Steel Laminate inductors.

クラシック、JAZZ,J-POP, ブルース、ロック・・オールマイティーなハイエンド3-WAYスピーカーです。

良い音質のKITです。（パーツのアップグレードをしました。コンデンサー、抵抗）

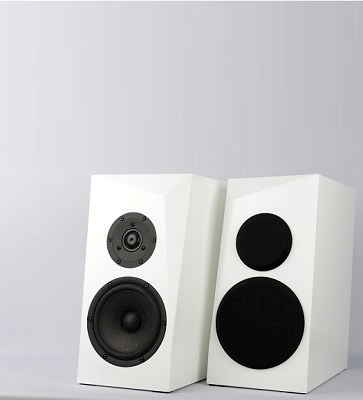

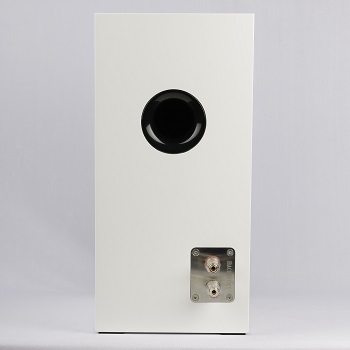

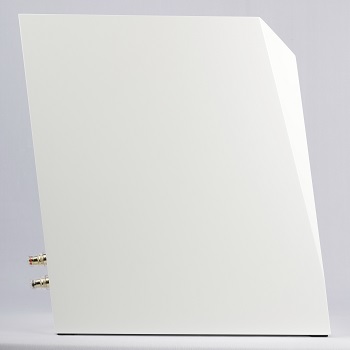

Satori Ara 2-Way Speaker Kit- Pair（完全KIT）

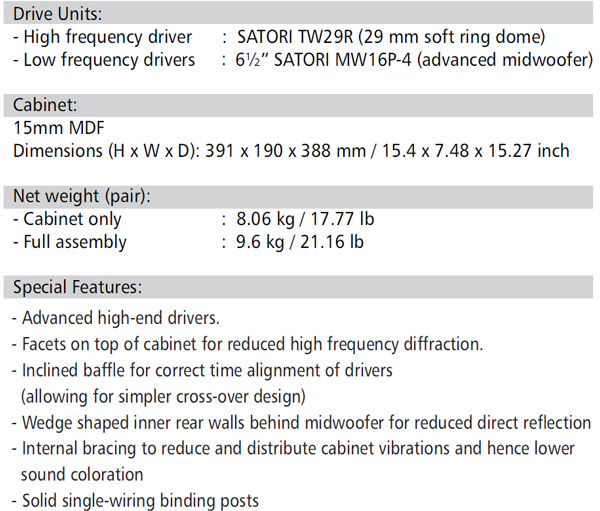

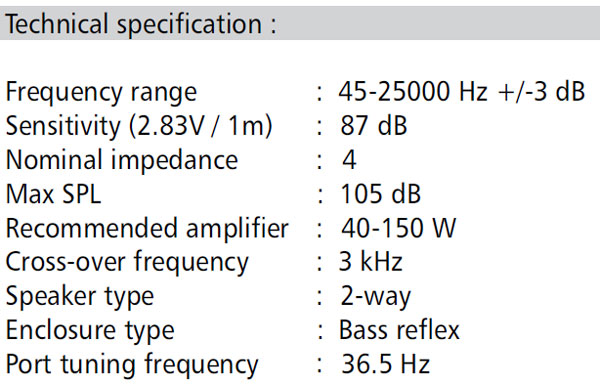

The Ara is a 2-way stand-mount speaker kit based on the top line of Satori drivers and was designed by the Danish SB engineering team.

The gently faceted top corner shape is specially angled to reduce high frequency diffraction and yields superb imaging qualities. 7⁰ inclined baffle slope helps time align the drivers, allowing for a relatively simple crossover design that delivers impressive sound staging. The wedge shaped inner rear walls behind the midwoofers reduce reflections, while the inclined bottom diminishes standing waves. All the cabinet panels are cut from 18mm MDF with internal bracing to distribute cabinet vibrations evenly and hence lower sound coloration.

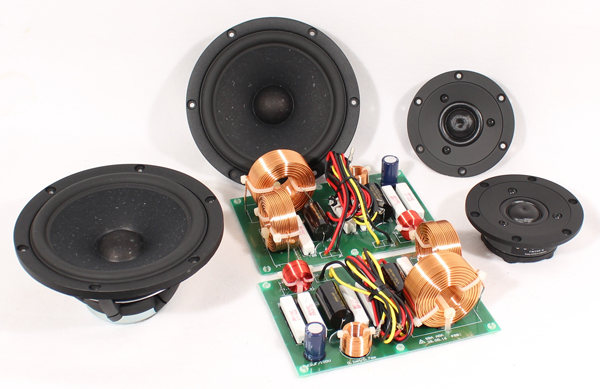

The Ara kit comes with everything required to build a stereo pair of speakers. The cabinets are completely assembled and have a premium high gloss finish. The driver holes are precision cut for flush mounting of the tweeters and woofers. A rear port is built in, and the back is cut for the included terminal plate with binding posts. Internal damping material and driver mounting hardware is included. The crossovers are even pre-wired and terminated with slide on quick connects for the drivers. No soldering is required, and kit assembly can be completed with a screwdriver or drill. Assembly instructions are included.

SB engineering teamが設計したトップラインスピーカーです。

ネットワークは抵抗Mundorf Mresist,コンデンサーはClarity MR, Clarity CSAにアップグレードできますす。

SEAS EXCEL T35C-002 (E0055-06) 1.5inch Textile Dome Tweeter

E0055_T35C002_Datasheet.pdf

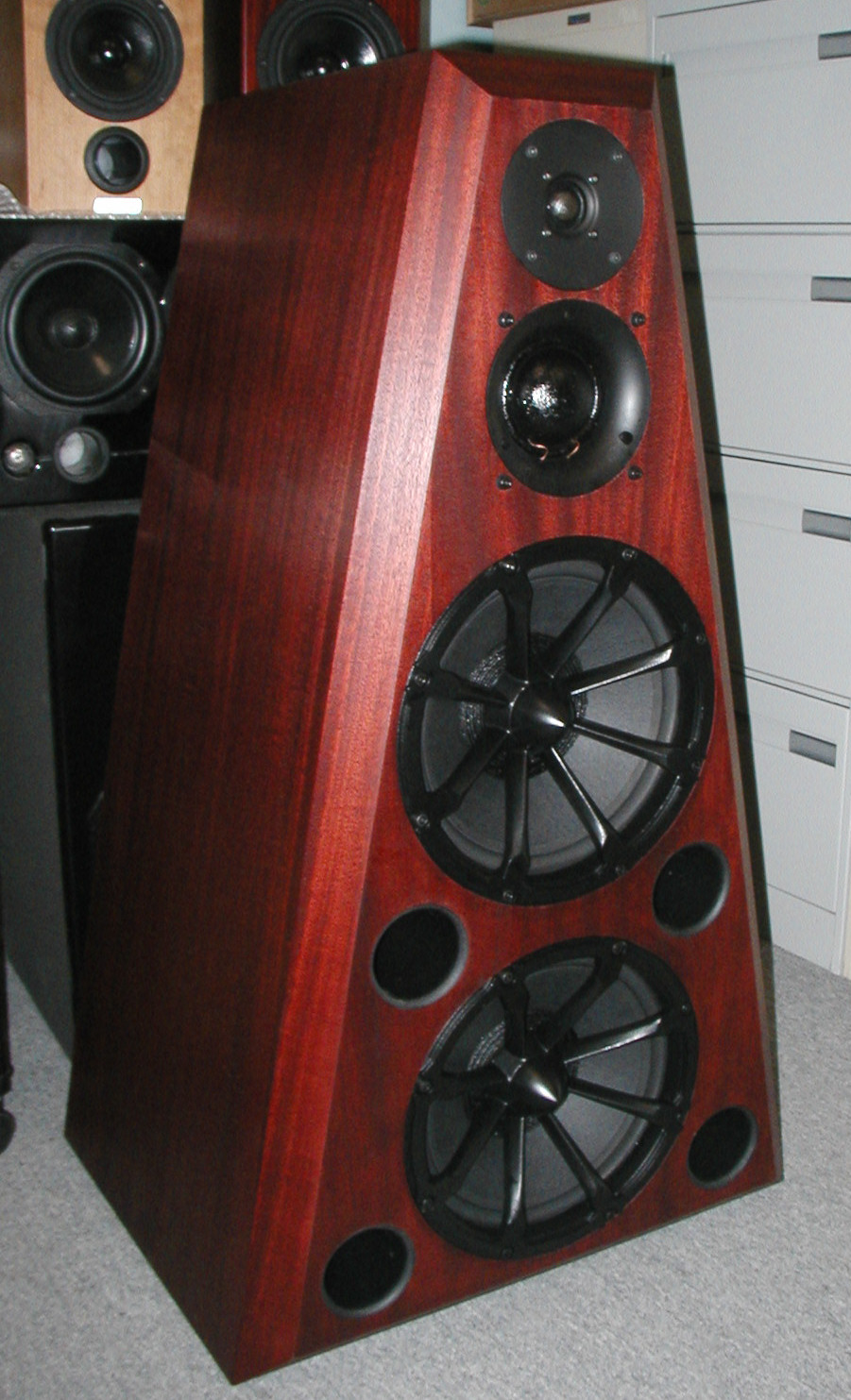

Pyramid

The Pyramid as phenomenal sound, fast bass and extreme dynamics.

パーツの販売価格は問い合わせください。

NADA 2-Way Speaker Kit with Scan-Speak Illuminator drivers including the Beryllium tweeter

Klang+Ton magazine from Germany designed a 2-way reference bookshelf speaker called - NADA

here.

★密閉型も良いと思いますがバスレフタイプ(２５～４０Ｌ)がお薦めです。(個人により音質の好みはあります)

SEAS Bifrost 2-WayとこのIlluminator 2-Wayは市販品のハイエンド2Way(100万円前後)より良いものができます。

ネットワークパーツはある程度、良いものを使う必要。

The Design

The NADA is a speaker kit designed by Klang + Ton magazine of Germany.

The Illuminator D3004/6640 Beryllium dome tweeter is mated with the Illuminator 18WU/4741T 7" paper cone neo magnet woofer in a sealed box alignment.

This is a kit design offered in the July 2011 issue of KLANG + TON magazine.

The magazine is written in German and not available in other languages.

You can download a copy of the magazine for a small fee from this address.

https://www.hifitest.de/shop/zeitschriften-print/klang--ton/index.php

The Crossovers

The components are 6dB on the woofer and 18dB on the tweeter along with various corrective circuits.

販売価格はお問い合わせください。

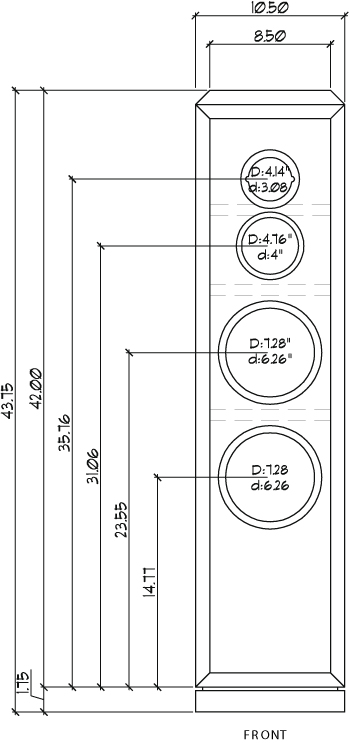

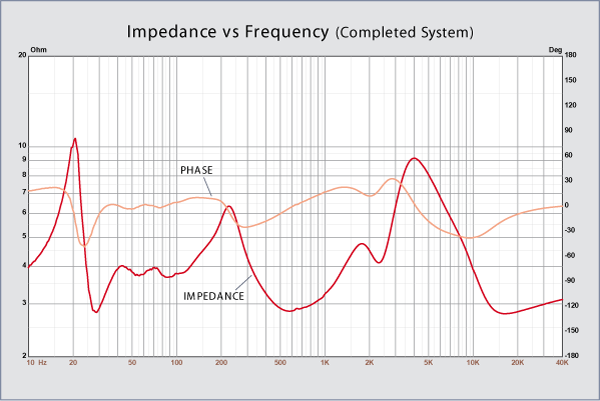

3-WAY Speaker Kit with Scan-Speak Illuminator drivers including the Beryllium tweeter

Peter Noerbaek of PBN Audio working with Scan-Speak of Denmark have developed this amazing DIY speaker kit.

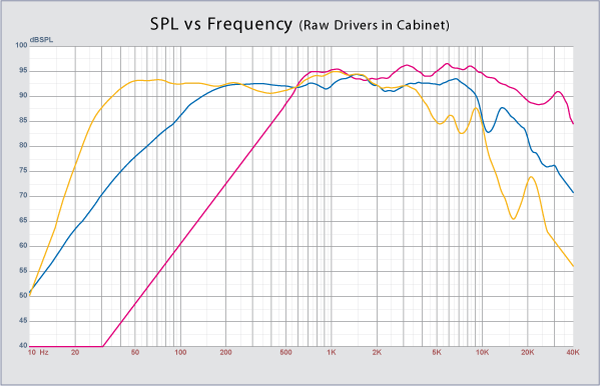

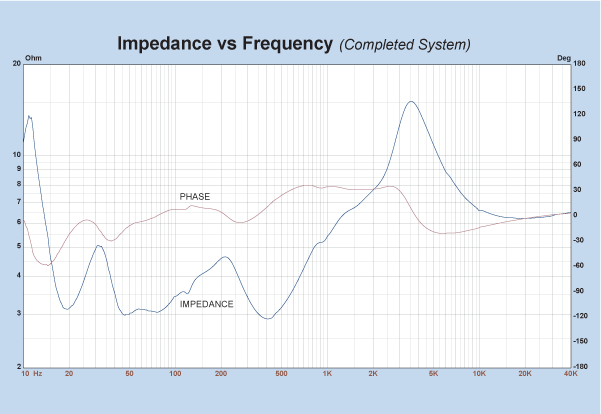

1. D3004/6640 Beryllium tweeter

2. 12MU/4731T Illuminator Mid

3. 18MU/8741T Illuminator Woofer

ネットワーク図面も公開されていますので高定数コンデンサーはJENSEN Audio Grade Axial electrolytic capacitorを使って製作されると更に音はグレードアップできます。　 (既成品は安価なベニック製品を使用しています)

ハイエンドをお望みならばコイル、抵抗、コンデンサーもアップグレードされると良いと思います。価格を抑えるために既製品(完成品)ネットワークは安価なものを使用しています。

販売価格はお問い合わせください。

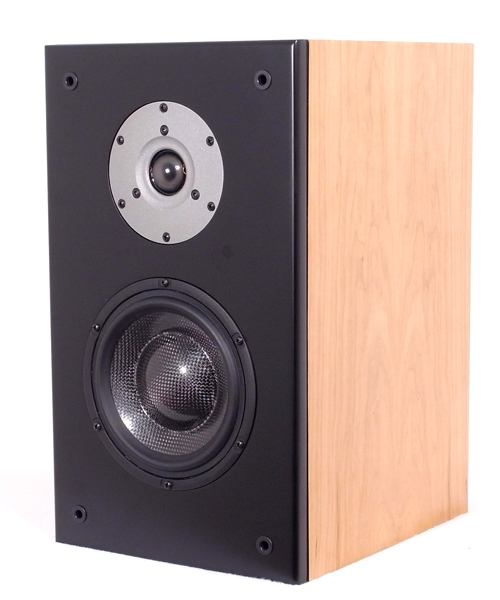

Morel Ziv Two Kit

http://www.youtube.com/watch?v=W860teWzQPs

販売価格はお問い合わせください。

音も温かく、透明感、情報量も多いなかなか良い2WAYができます。

市販品の1ペア５０万円クラスには負けません。

ネットワークは基板をやめてパーツを良いものに変更し、内部を特殊塗装し、フロントバッフルをブナ、バーチ集積合板、無垢板に交換するとさらに上品な良い音になります。

Tweeterもブラックタイプに変更した方が見映えも良いです。

Accessories TD-CUPS (Qty 2, for Bi-Wire)
- Cabinet , Black Ash,　cherry, Maple
- Choose Xover Type w/ Mundorf Supreme Silver/Oil Cap wo” Kit

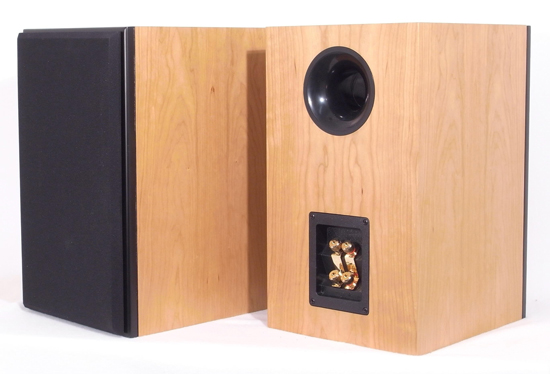

New 6" 2-way Kit for Stereo or Home Theater!

High performance kit using the Supreme SCW-636 woofer and the Supreme ST-1048 tweeter. A kit for the connoisseur, designed to showcase the wonderful detail of the Supreme drive units without sounding harsh or bright. The ZIV TWO kit has a very lifelike reproduction of vocals; the sound is clean and detailed with a large deep soundstage. Bass is tight, controlled at all times displaying subtlety rather than a heavy ponderous sound that many speakers have. This kit includes two woofers, two tweeters, and two professionally assembled crossovers with your choice of series capacitor. You may wish to purchase some foam for lining and some wool for filling the inside of the box. TD terminal cups and MD14 cabinets are optional and available via the pulldown menus. We do not have precut baffles for this combination at this time. Damping materials, wire, screws, ports, etcetera are not included.

https://www.madisound.com/store/manuals/Ziv%20Two%20graphs%20and%20port.pdf

System Specifications:

Average SPL ~86 dB
Nominal System Impedance ~8 ohms
Nominal Power Handling ~150 watts
F3 (3 dB down-point) ~ 45 Hz
Top-end 88+ db at 15 kHz+

SCW636 Woofer Features:

    * Layer Cone: Carbon Fiber / Rohacell Foam / Carbon Fiber
    * Copper sleeve on pole piece
    * Uniflow aluminum die cast frame
    * 3" large Hexatech Aluminum Voice Coil
    * Neodymium / Ferrite Hybrid Magnet System

ST1048 Tweeter Features:

    * Underhung voice coil
    * Large Hexatech™ aluminum voice coil
    * 104mm IDR™ Improved Dispersion Recess aluminum face plate
    * Replaceable Acuflex™ dome / coil assembly
    * Neodymium flat pancake design magnet
    * High power handling

Cabinet Design:

    * 14 liters vented cabinet (Madisound MD14B)
    * Woofer below tweeter configuration
    * Port located at the bottom of the cabinet in line with the woofer

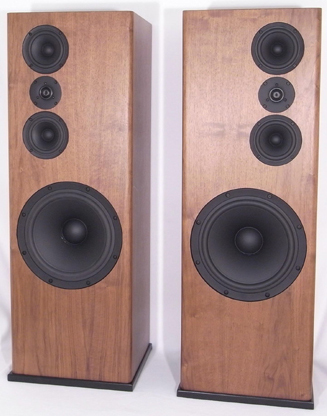

Zaph|Audio SB12.3 ~ SB Acoustics 12"

, Dual Midrange, 3-Way, Parts Only

http://www.zaphaudio.com/SB12.3/

販売価格はお問い合わせください。

(ネットワークスタンダードタイプ)

ネットワークアップグレード可能

SB Acoustics drivers have quickly established themselves as serious performers within the DIY speaker building community. We feel this line of drivers is a perfect choice for a high performance 3-Way design. There is no concession in the driver selection or crossover design, yet the final price is more than reasonable for a system of this stature.

Specifications:

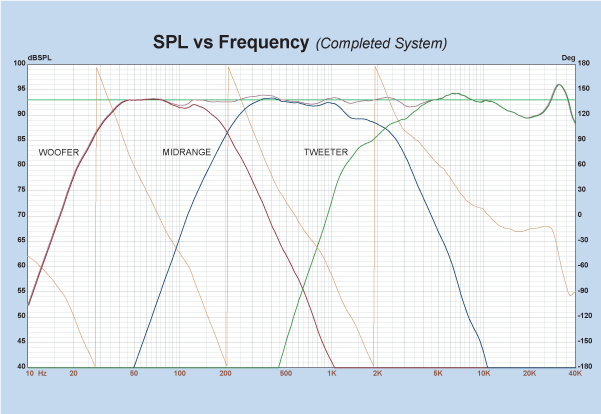

§ Frequency response: 37 Hz – 20+ kHz, Anechoic F3: 37 Hz

§ In room response even lower. This system has plenty of bottom end!

§ Recommended amplification: 50 W – 250+ W per channel

§ Crossover frequencies: 220 Hz & 2.2 kHz

§ System sensitivity: 92 dB

§ System impedance: Minimum 4.3 ohms, Avg. 5-6ohms

§ Most amplifiers will have no problem powering these speakers

§ 46” Tall x 16” Wide x 14” Deep (see cabinet drawing)

§ 3.75 cubic foot sealed airspace for woofer

§ 0.58 cubic foot sealed airspace (separate from woofer) for dual midrange drivers

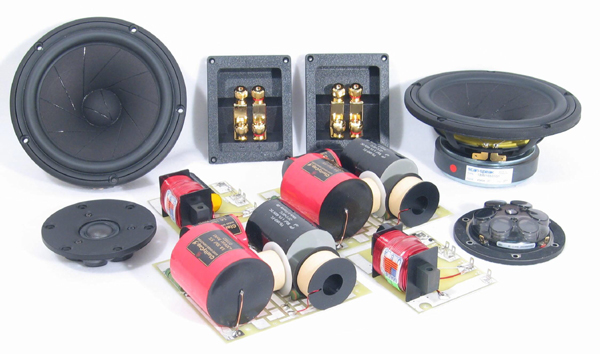

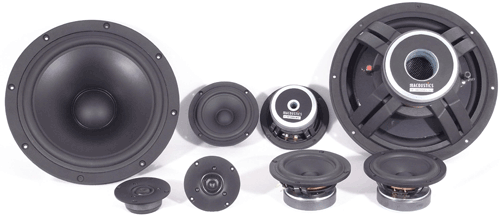

Each SB12.3 Kit Includes:

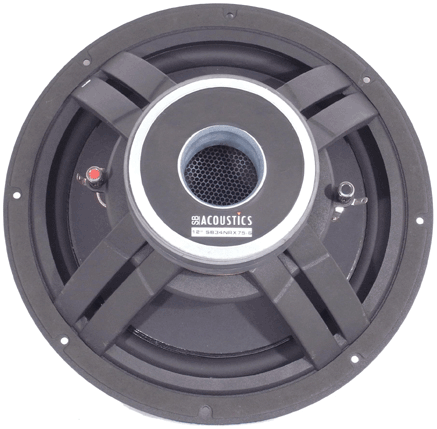

1,SB34NRX75-6 12" Woofers

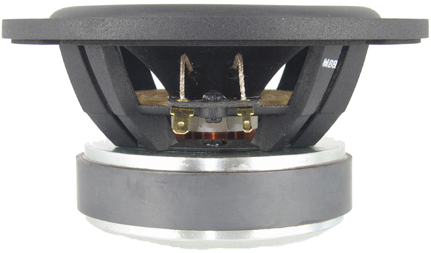

2, SB15NRXC30-85" Midrange Drivers

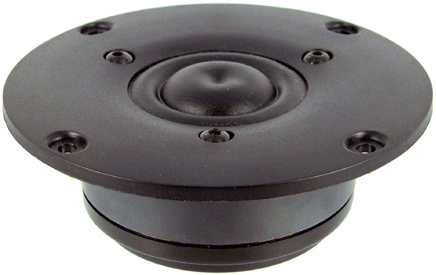

3,SB29RDC-C000-4 Ring Dome Tweeters

Professionally Assembled Crossovers (see crossover schematic & notes below)

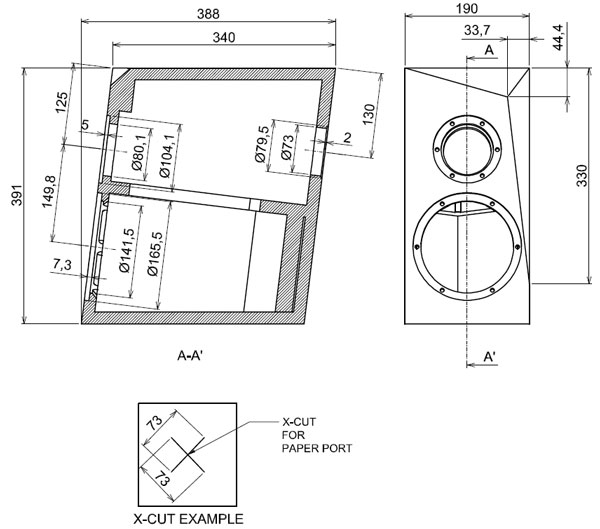

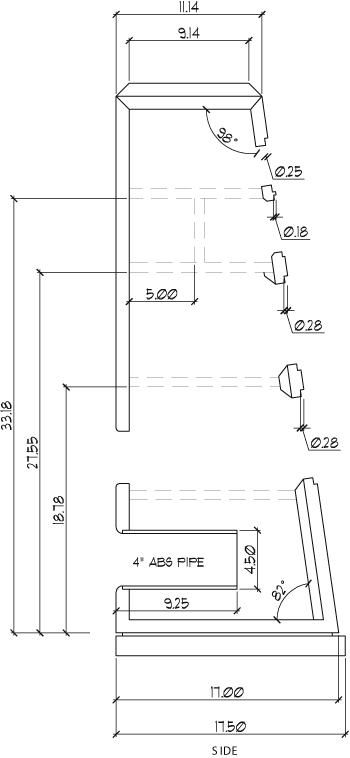

キャビネット図面

http://www.zaphaudio.com/SB12.3/SB12.3-enclosure.pdf

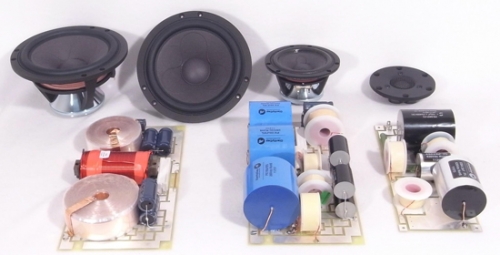

Crossover Information:

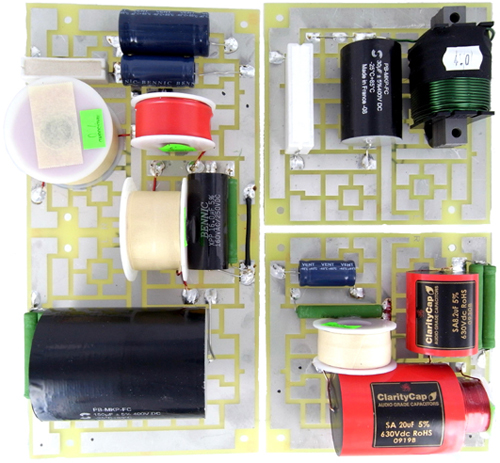

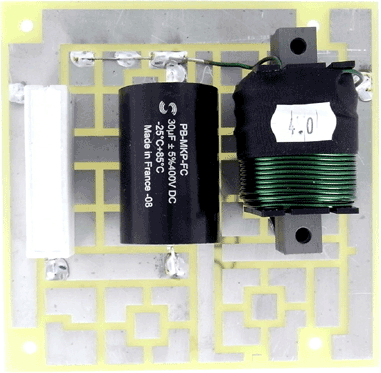

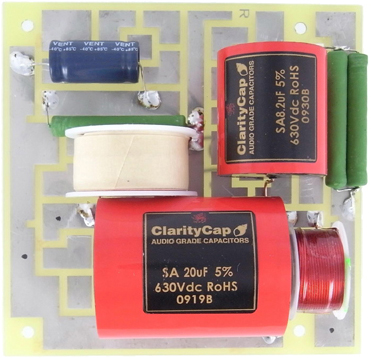

Crossover parts were carefully selected for both high quality sound reproduction and adequate power handling. The series circuits feature a low DCR Sledgehammer 15 AWG Steel Laminate inductor for the woofer, Solen Fastcap & Sidewinder 16AWG Air Core inductors for the midrange, and Clarity SA Caps for the tweeter. Mundorf MOX resistors are also used throughout the tweeter circuit and in series with the midrange. The crossovers are professionally assembled on three circuit boards. The midrange is on a Matrix Double, and the woofer and tweeter are each on a Matrix. You can bi-wire/amp or even tri-wire/amp the SB12.3 if you desire.

Crossover Upgrade Options:
(as described above, but with the following changes)

1,Clarity ESA Caps in the tweeter circuit

2,Mundorf M-Cap Supreme caps in the tweeter circuit

3,Clarity PX Caps in the series midrange circuit

4,Clarity PX Caps in the series midrange circuit & Clarity ESA Caps in the tweeter circuit

5,Clarity PX Caps in the series midrange circuit & Mundorf M-Cap Supreme caps in the tweeter circuit

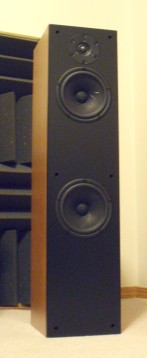

Zaph　Audio SR71 Kit (Pair)　- Parts Only

販売価格はお問い合わせください。

Seas Mirmir と同等もしくはそれ以上のすばらしいい音質です。

国内で販売されているハイクラス2WAYと音質は遜色ないと思います。

ZaphAudio

http://www.zaphaudio.com/SR71.html

スピーカーのスペックなどはホームページで確認してください。

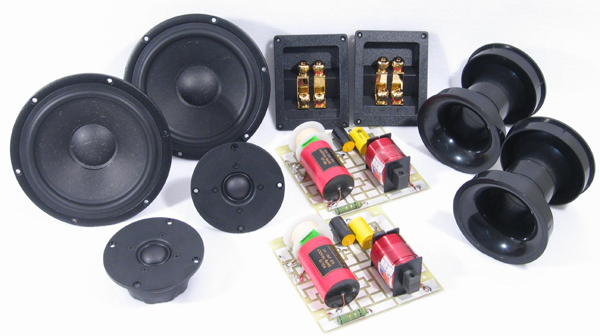

The ZA-SR71 is designed for Madisound by John Krutke of Zaph Audio.

John is a true asset to the DIY speaker building community,

and we are very pleased to offer you an easy to build kit based on his expertise.

Detailed information about this system can be found on Zaph Audio.

Both drivers are from the Seas Prestige lineup. In our opinion,

the Prestige line offers unparalleled performance for the price.

The mid/bass is the ER18RNX(1456) 7” Reed/Paper Pulp Cone woofer

with a copper shorting ring in the magnet system.

This driver provides smooth response, excellent excursion and very low distortion.

The tweeter is the extremely popular 27TDFC(H1189).

This ferrofluid cooled tweeter employs a High Definition pre-coated fabric dome

with a wide soft polymer surround.

The optimally dampened rear chamber allows for a low crossover point.

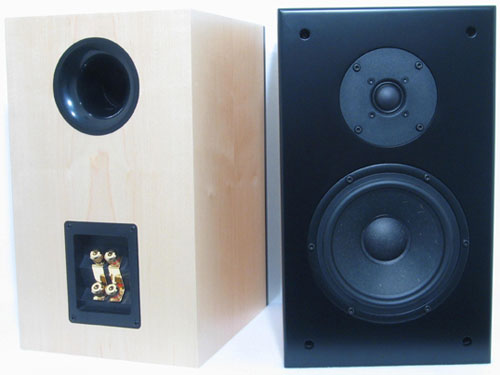

This kit is designed for use in the finishedMD14BP cabinet (.5cf, rear ported)

with the pre-routedMD14-B4 baffle.

The cabinets are sold in matched pairs and measure 9.1” W x 15.4” T x 11”D.

Cabinets have real wood veneer and are available in Black Ash, Maple and Cherry finishes.

Please choose one.

The ZA-SR71 kit includes everything you need for one pair of speakers, including assembled crossovers.

A soldering iron/pen and screwdriver/drill are the only tools needed for assembly.

Updgrades

You may upgrade the series inductor in the crossover to a Goertz Copper Foil 14awg for an additional charge.

Tube amp users should consider adding the impedance flattening circuit to the crossover.

Both options are available above.

NOTE: If you choose to add the impedance flattening circuit, you cannot biwire/biamp the speaker.

Parts & Accessories

(2) ER18RNX (H1456) mid/bass drivers

(2) 27TDFC (H1189) tweeters

(2) Professionally Assembled Crossovers

· Clarity SA Cap on tweeter

· Sledgehammer Steel Laminate 15awg Coil on woofer

· High quality parts throughout

· Bi-wire/Bi-amp capable
