Car Speaker Kits

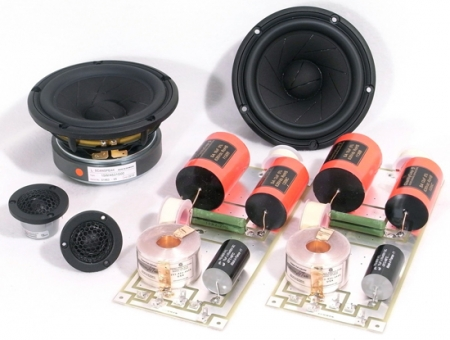

ScanSpeak 5.5inch 2-Way Signature Car Audio Kit - Pair



System Specifications

画像のネットワークをアップグレードしています。

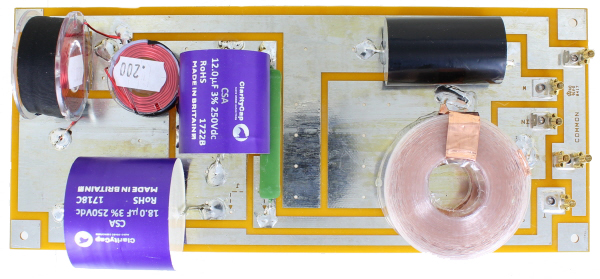

コンデンサー Carity MR, Clarity CSA

コイル Goertz 14awg Copper Foil inductor /Woofer



抵抗 Mundorf Mresist Supreme





Subwoofer Options



We recommend the following Scan-Speak subwoofers to compliment the Signature 2-Way system.

Scan-Speak Revelator 23W/4557-02 9" Aluminum Cone Subwoofer

Scan-Speak Discovery 26W/4558T 10" Aluminum Cone Subwoofer

Scan-Speak Discovery 30W/4558T 12" Aluminum Cone Subwoofer

Recommended Placement

Scan-Speak recommends a 4 channel installation for regular sized vehicles. The front stage should have the woofers door mounted and the tweeters in the dashboard or A-pillar. The rear stage should have both the woofers and tweeters mounted in the rear doors. A 2 channel installation is a good option for smaller cabin vehicles.



Tweeter Level Options

Frequency Response

The following is the measured frequency response with tweeter level options of the Signature 6.5" 2-Way done by the Scan-Speak engineering team in Videbaek, Denmark.





Mechanical Drawing of Drivers

.





販売価格は問い合わせください。



高音質のKITです。

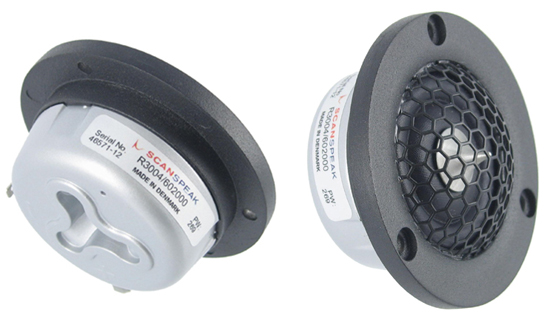

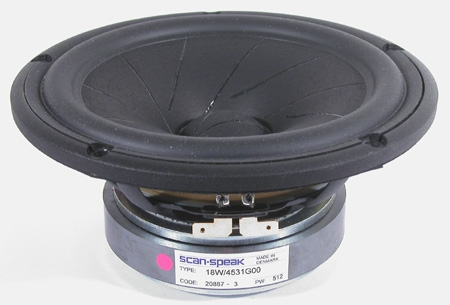

ScanSpeak 6.5inch  2-Way Signature Car Audio Kit - Pair





Each Kit Includes

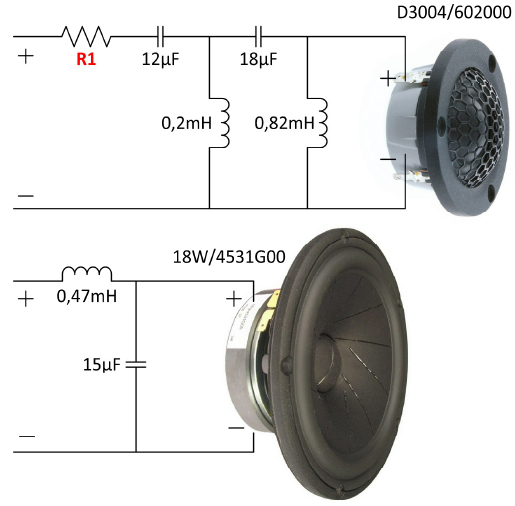

System Specifications



Subwoofer Options

We recommend the following Scan-Speak subwoofers to compliment the Signature 2-Way system.

Scan-Speak Revelator 23W/4557-02 9" Aluminum Cone Subwoofer

Scan-Speak Discovery 26W/4558T 10" Aluminum Cone Subwoofer

Scan-Speak Discovery 30W/4558T 12" Aluminum Cone Subwoofer

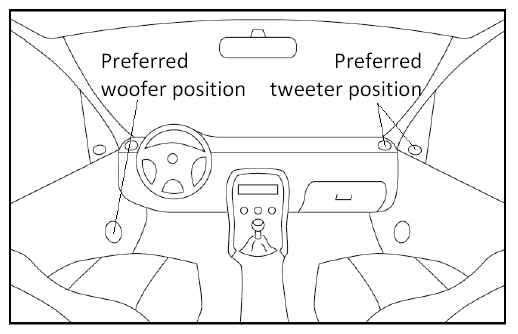

Recommended Placement

Scan-Speak recommends a 4 channel installation for regular sized vehicles. The front stage should have the woofers door mounted and the tweeters in the dashboard or A-pillar. The rear stage should have both the woofers and tweeters mounted in the rear doors. A 2 channel installation is a good option for smaller cabin vehicles.

Frequency Response

The following is the measured frequency response with tweeter level options of the Signature 6.5" 2-Way done by the Scan-Speak engineering team in Videbaek, Denmark.

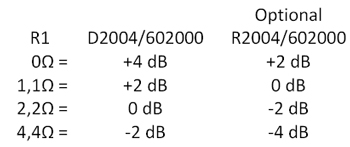

Tweeter Level Options

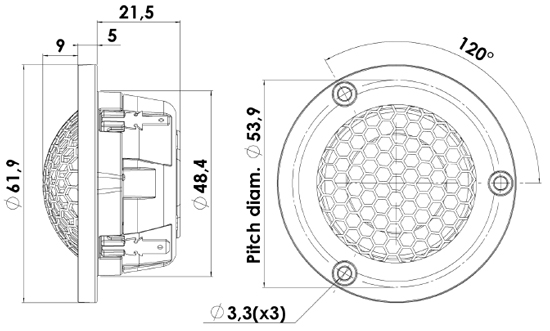

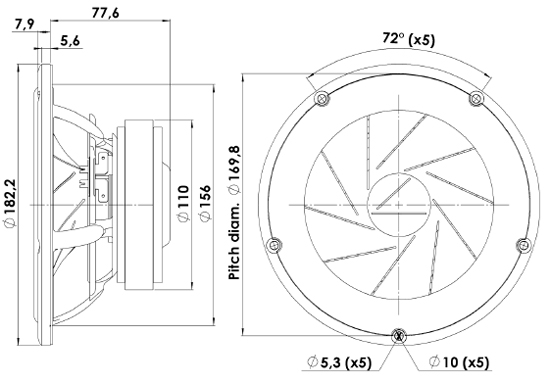

Mechanical Drawing of Drivers

Please review the following mechanical drawings of the drivers used in this Signature kit. These are not standard size drivers, so please ensure you have adequate mounting space and depth for your installation.

1" = 25.4mm
