mundorf｜マロニエオーディオ

Air-Core coils　販売開始(受注製造　製造に１カ月半はかかります)

L300(VL300は未販売)は国内で入手できるのでVL390のみ販売します。

販売価格は問い合わせください。

VL390

wire 6 * 2 mm　(V: Vacuum impregnation 処理済み)
　

[mH] ±2% [Ohm]
　

0,10    0,01
0,12   0,01
0,15    0,02
0,18   0,02
0,22    0,02
0,27   0,03
0,33   0,03
0,39    0,03
0,47   0,04
0,56   0,04
0,68   0,05
0,82    0,05
1,0     0,06
1,2      0,07
1,5     0,08
1,8      0,09
2,0     0,10
2,2     0,12
2,7     0,13
3,0      0,14
3,3      0,15
3,9      0,17
4,7      0,19
5,6      0,22

TRANSFORMER core coil WITH FERON T 300(VT300)

Vacuum impregnation代金は別です。

(VT390も販売しています)

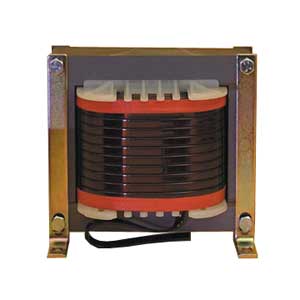

T 300 transformer-core coil with Feron

For the manufacture of our Transformercore coils we use nothing but FERON・which is extremely low in losses and distortions. This high quality initial material is subsequently heat treated in a special process. In this way, FERON・is provided with a crystal lattice structure which displays optimum magnetic properties. Such a core material is used for the manufacture of high quality audio transformers. In this construction type, coils can be manufactured with very low internal resistances and extreme load-bearing capacity. These are the preconditions for a precise deep bass. The ratios of inductivity to internal resistance achieved here can often not even be realised with pure air cored coils, or only at considerably greater financial cost.

Due to their high quality, vacuum impregnation is also strongly recommended for transformer core coils as a measure to audibly increase the quality further.
　

Technical specifi cations:
　

Wire diameter: 3,00 mm
Core material: FERON
Grain-oriented silicon iron 0.35 mm
OFC-Copper 99.99% pure

Technical details :

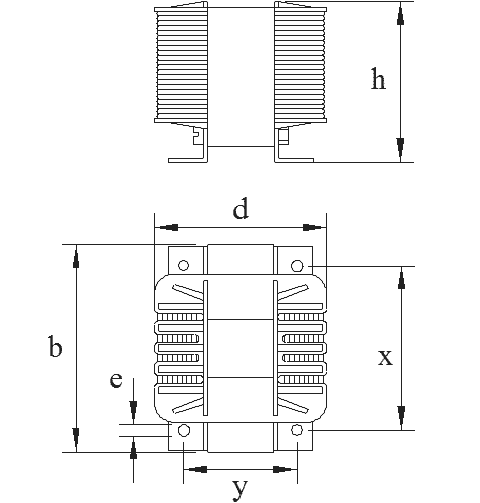

Inductance	Ohm	b	h	d	x	y	e
1.0	0.03	106 mm	78 mm	88 mm	84 mm	60 mm	5.8 mm
1.2	0.03	106 mm	78 mm	88 mm	84 mm	60 mm	5.8 mm
1.5	0.04	106 mm	78 mm	88 mm	84 mm	60 mm	5.8 mm
1.8	0.04	106 mm	78 mm	88 mm	84 mm	60 mm	5.8 mm
2.0	0.05	130 mm	95 mm	105 mm	104 mm	71 mm	5.8
2.2	0.05	130 mm	95 mm	105 mm	104 mm	71 mm	5.8
2.7	0.07	130 mm	95 mm	105 mm	104 mm	71 mm	5.8
3.0	0.06	130 mm	95 mm	105 mm	104 mm	71 mm	5.8
3.3	0.06	130 mm	95 mm	105 mm	104 mm	71 mm	5.8
3.9	0.07	130 mm	95 mm	105 mm	104 mm	71 mm	5.8
4.7	0.07	130 mm	95 mm	105 mm	104 mm	71 mm	5.8
5.6	0.09	130 mm	95 mm	105 mm	104 mm	71 mm	5.8
6.8	0.10	150 mm	111 mm	107 mm	122.5mm	71 mm	7 mm
8.2	0.10	150 mm	111 mm	107 mm	122.5mm	71 mm	7 mm
10	0.12	150 mm	111 mm	107 mm	122.5mm	71 mm	7 mm
12	0.13	150 mm	111 mm	107 mm	122.5mm	71 mm	7 mm
15	0.15	150 mm	111 mm	107 mm	122.5mm	71 mm	7 mm

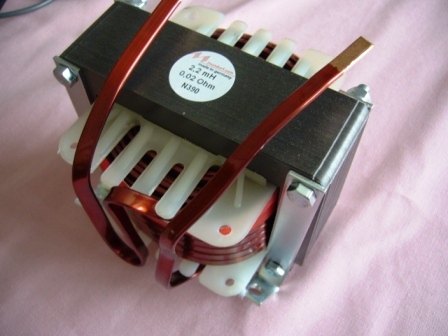

ZERO OHM COIL　N 390

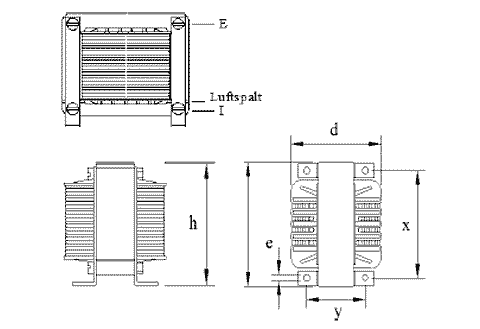

The Zero-Ohm-Coil (ZOC) is a special form of transformer core coil.　This is also made of the top quality material FERON. In the ZOC, an air gap is calibrated and adjusted by hand between the two laminated cores (one I-shaped and one E-shaped). The air gap determines the inductivity of the coil and demands great care in the manufacturing process. It must not be too small, as saturation effects would otherwise occur at high loadings. The high production complexity of the ZOC is always justified when maximum faithfulness in pulse reproduction is required. With our ZOC, internal resistances are possible that cannot be achieved with other coils. Vacuum impregnation is absolutely recommended for zero-ohm-coils because it increases yet further the audible quality, making the most of the product engineering.

Technical specifications:
Wire diameter: 6 * 2 mm
Core material: FERON
Grain-oriented silicon iron 0.35 mm
OFC-Copper 99.99% pure

Technical details :

Inductance	Ohm	Width	h	d	x	y	x1	x2
1.0	0.02	106 mm	94 mm	88 mm	84 mm	60 mm	5.8 mm	11 mm
1.2	0.02	106 mm	94 mm	88 mm	84 mm	60 mm	5.8 mm	11 mm
1.5	0.02	106 mm	94 mm	88 mm	84 mm	60 mm	5.8 mm	11 mm
1.8	0.02	106 mm	94 mm	88 mm	84 mm	60 mm	5.8 mm	11 mm
2.0	0.02	106 mm	94 mm	88 mm	84 mm	60 mm	5.8 mm	11 mm
2.2	0.02	106 mm	94 mm	88 mm	84 mm	60 mm	5.8 mm	11 mm
2.7	0.02	106 mm	94 mm	88 mm	84 mm	60 mm	5.8 mm	11 mm
3.0	0.02	106 mm	94 mm	88 mm	84 mm	60 mm	5.8 mm	11 mm
3.3	0.02	106 mm	94 mm	88 mm	84 mm	60 mm	5.8 mm	11 mm
3.9	0.04	130 mm	118 mm	105 mm	84 mm	71 mm	5.8 mm	11 mm
4.7	0.04	130 mm	118 mm	105 mm	84 mm	71 mm	5.8 mm	11 mm
5.6	0.04	130 mm	118 mm	105 mm	84 mm	71 mm	5.8 mm	11 mm
6.8	0.04	130 mm	118 mm	105 mm	84 mm	71 mm	5.8 mm	11 mm
8.2	0.04	130 mm	118 mm	105 mm	84 mm	71 mm	5.8 mm	11 mm
10	0.05	150 mm	132 mm	107 mm	122.5 mm	71 mm	7 mm	13 mm
12	0.05	150 mm	132 mm	107 mm	122.5 mm	71 mm	7 mm	13 mm
15	0.05	150 mm	132 mm	107 mm	122.5 mm	71 mm	7 mm	13 mm
18	0.05	150 mm	132 mm	107 mm	122.5 mm	71 mm	7 mm	13 mm
22	0.05	150 mm	132 mm	107 mm	122.5 mm	71 mm	7 mm	13 mm

Vacuum impregnation代金は別です。

Duelund CAST PIO12AWGは最高と思いますがMundorf ZERO OHM COIL　N 390も

引けを取らない超情報量、スピード感、低音の量感、透明感、力強さ、音質の賓は他のメーカーでは表現できません。

とにかく素晴らしいです!

まずは使って見てください。

使われた方、全員が驚かれています。

　16cm～40cm　Wooferにお薦めいたします。

国内トランスメーカーでも同様な製品を販売していますが、残念ながらここまでの音質は出せない。

ScanSpeak,SEAS EXCEL（26cmWoofer）,JBL,TAD,GOTO,ALTEC、

FOSTEX W400AHRの（40cmWoofer）に特にお薦めいたします。

受注生産ですので納品に2カ月前後かかります。

3.9mHでエージングは1000時間前後かかります。

MUNDORF ZERO OHM COIL N 300

The Zero-Ohm-Coil (ZOC) is a special form of transformer core coil.This is also made of the top quality material FERON. In the ZOC, an air gap is calibrated and adjusted by hand between the two laminated cores (one I-shaped and one E-shaped). The air gap determines the inductivity of the coil and demands great care in the manufacturing process. It must not be too small, as saturation effects would otherwise occur at high loadings. The high production complexity of the ZOC is always justified when maximum faithfulness in pulse reproduction is required. With our ZOC, internal resistances are possible that cannot be achieved with other coils. Vacuum impregnation is absolutely recommended for zero-ohm-coils because it increases yet further the audible quality, making the most of the product engineering.

Technical specifications:
Wire diameter: 3,00 mm
Core material: FERON
Grain-oriented silicon iron 0.35 mm
OFC-Copper 99.99% pure

Inductance	Ohm	Width	h	d	x	y	x1	x2　　　　　　　　円/個
1.0	0.03	96 mm	87 mm	76 mm	64 mm	46 mm	5.8 mm	11 mm
1.0	0.03	96 mm	87 mm	76 mm	64 mm	46 mm	5.8 mm	11 mm
1.2	0.03	96 mm	87 mm	76 mm	64 mm	46 mm	5.8 mm	11 mm
1.5	0.03	96 mm	87 mm	76 mm	64 mm	46 mm	5.8 mm	11 mm
1.8	0.03	96 mm	87 mm	76 mm	64 mm	46 mm	5.8 mm	11 mm
2.0	0.03	96 mm	87 mm	76 mm	64 mm	46 mm	5.8 mm	11 mm
2.2	0.03	96 mm	87 mm	76 mm	64 mm	46 mm	5.8 mm	11 mm
2.7	0.03	96 mm	87 mm	76 mm	64 mm	46 mm	5.8 mm	11 mm
3.0	0.03	96 mm	87 mm	76 mm	64 mm	46 mm	5.8 mm	11 mm
3.3	0.03	96 mm	87 mm	76 mm	64 mm	46 mm	5.8 mm	11 mm
3.9	0.05	106 mm	94 mm	88 mm	84 mm	60 mm	5.8 mm	11 mm
4.7	0.05	106 mm	94 mm	88 mm	84 mm	60 mm	5.8 mm	11 mm
5.6	0.05	106 mm	94 mm	88 mm	84 mm	60 mm	5.8 mm	11 mm
6.8	0.06	130 mm	118 mm	105 mm	84 mm	71 mm	5.8 mm	11 mm
8	0.06	130 mm	118 mm	105 mm	84 mm	71 mm	5.8 mm	11 mm
10	0.09	130 mm	118 mm	105 mm	84 mm	71 mm	5.8 mm	11 mm
12	0.09	130 mm	118 mm	105 mm	84 mm	71 mm	5.8 mm	11 mm
15	0.09	130 mm	118 mm	105 mm	84 mm	71 mm	5.8 mm	11 mm
18	0.09	130 mm	118 mm	105 mm	84 mm	71 mm	5.8 mm	11 mm
22	0.14	150 mm	132 mm	107 mm	122.5 mm	71 mm	7 mm	13 mm
27	0.14	150 mm	132 mm	107 mm	122.5 mm	71 mm	7 mm	13 mm
33	0.14	150 mm	132 mm	107 mm	122.5 mm	71 mm	7 mm	13 mm

Vacuum impregnation代金は別です。
